To fit

  1. Lubricate the pad sliding and contact surfaces with Special paste.

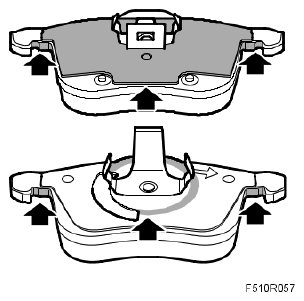

    Fig 1: Locating Pad Sliding And Contact Surfaces
    G05061335Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Fit the brake pads into the hydraulic body.
    NOTE: The inner brake pad must be fitted so that the arrow points in the direction of rotation of the brake disc for forward travel.
    Fig 2: Fitting Brake Pads Into Hydraulic Body
    G05061336Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Place the hydraulic body into the carrier.

    Fit the guide pins.

    Tightening torque 28 Nm (21 lbf ft)

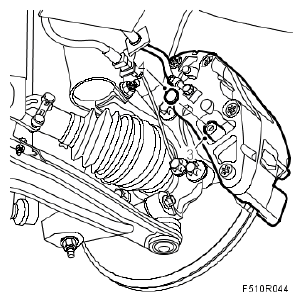

    Fig 3: Illustration For Steps 3-4
    G05061337Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Fit the protective covers.
  5. Fit the retaining spring to the brake caliper. Position the upper edge and center of the spring. Then press home the lower end of the spring. Make sure the lug engages.
    Fig 4: Pressing Lower End Of Retaining Spring
    G05061338Courtesy of SAAB-SCANIA OF AMERICA, INC.
  6. Fit the wheel.
  7. Lower the car.
  8. Depress the brake pedal repeatedly in order to press out the brake pistons.
  9. Check the brake fluid level and top up as necessary.
  10. Check the operation of the foot brake.
