To remove

  1. Raise the car.
  2. Remove the wheel.
  3. Remove the retaining spring from the brake caliper.
    Fig 1: Illustration For Steps 3-4
    G05061384Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Remove the protective covers. Remove the hydraulic body and suspend it with a hook on the brake pipe holder.
    IMPORTANT: Be careful that the brake pipes do not get damaged.
  5. Remove the brake pads.
  6. Undo the screw of the upper suspension arm to provide access to the screw of the brake caliper retainer.
    NOTE: Do not pull out the suspension arm screw all the way.
  7. Remove the brake caliper carrier.

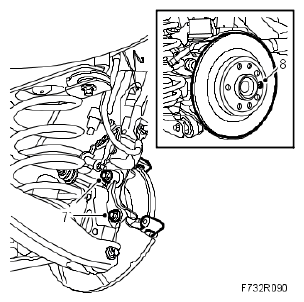

    Fig 2: Illustration For Steps 7-8
    G05062430Courtesy of SAAB-SCANIA OF AMERICA, INC.
  8. Remove the brake disc locking bolt. Lift off the brake disc.
