Hydraulic Brake System - FOOTBRAKE System
>>
Component Locator
>>
Pressure switch, vacuum (458)
Pressure switch, vacuum (458)
Location:
in engine bay on right-hand spring strut

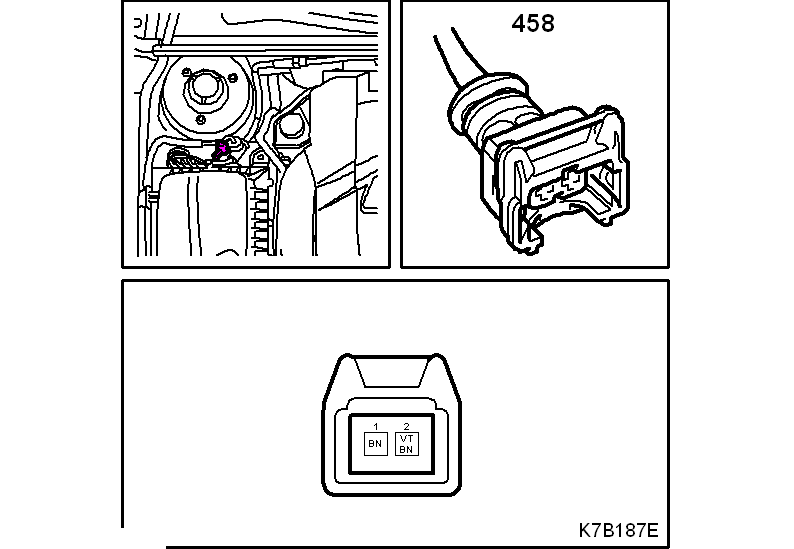

Fig 1: Identifying Pressure Switch, Vacuum (458)
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
