High level brake light (30RC)

Location:  above rear screen

4D

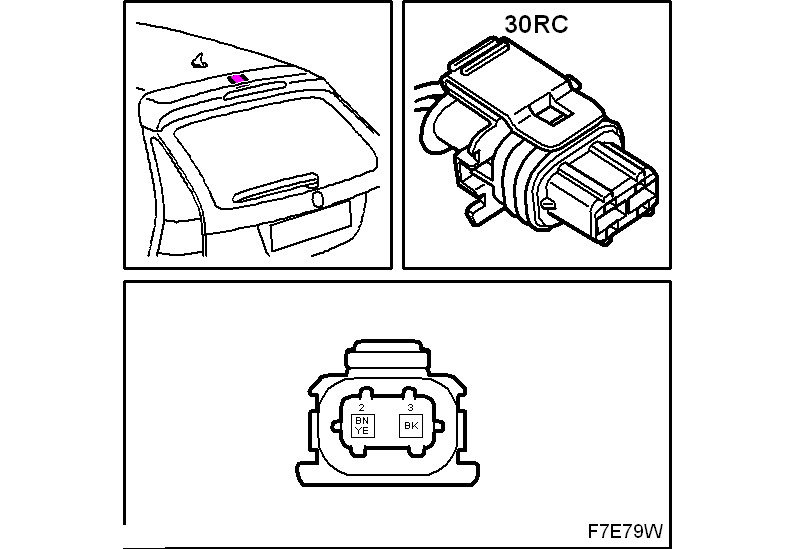

Fig 1: Identifying High Level Brake LIGHT (30RC) - 4D

Courtesy of SAAB-SCANIA OF AMERICA, INC.

5D

Fig 2: Identifying High Level Brake LIGHT (30RC) - 5D

Courtesy of SAAB-SCANIA OF AMERICA, INC.

CV

Fig 3: Identifying High Level Brake LIGHT (30RC) - CV

Courtesy of SAAB-SCANIA OF AMERICA, INC.
