Home >> Saab >> 2009 >> 9-7X L6-4.2L >> Repair and Diagnosis >> Wiper and Washer Systems >> Windshield Washer Switch >> Diagrams

Windshield Washer Switch: Diagrams

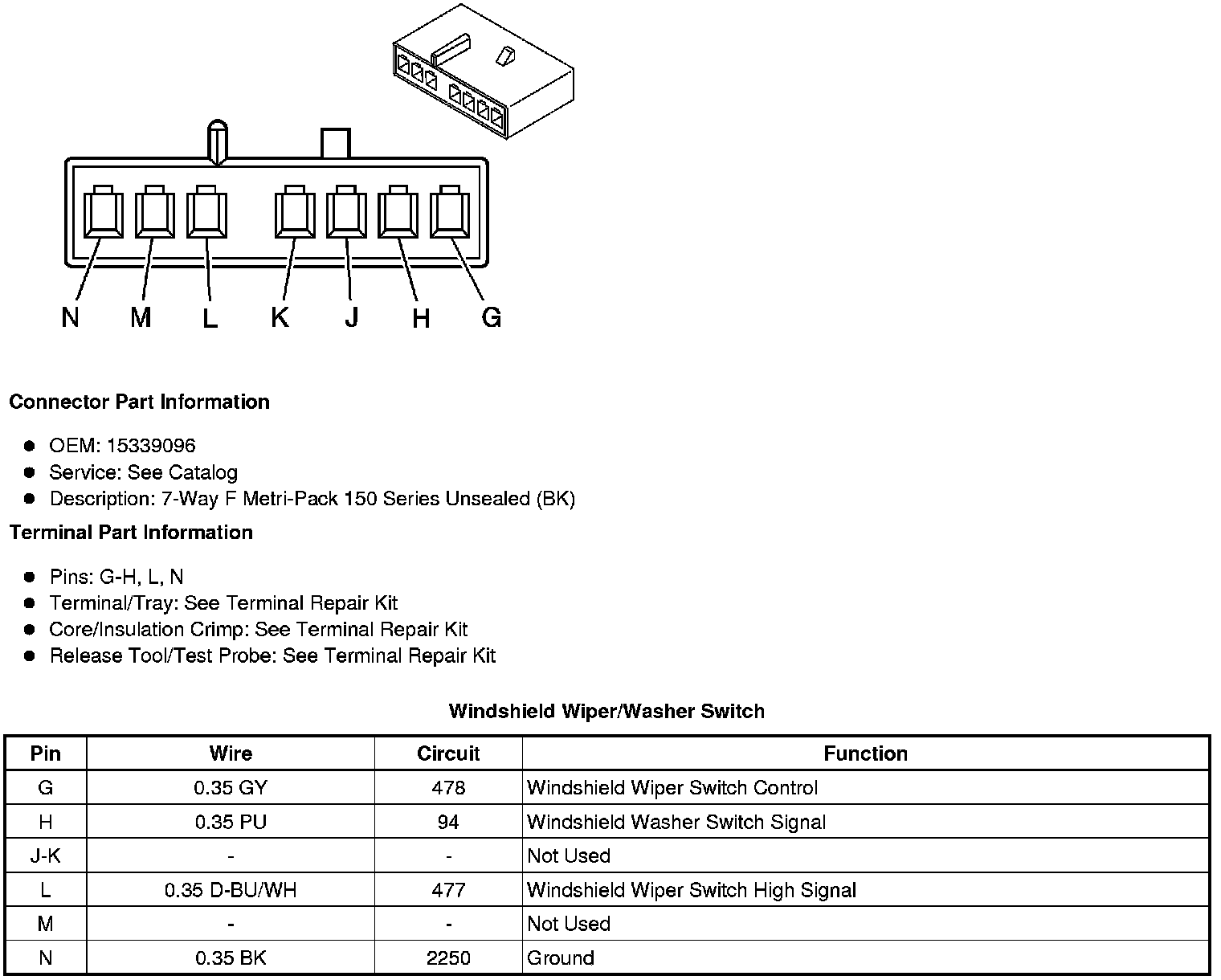

Component Connector End Views

Rear Window Wiper/Washer Switch





Windshield Wiper/Washer Switch
