Master Splice List




Master Electrical Component List

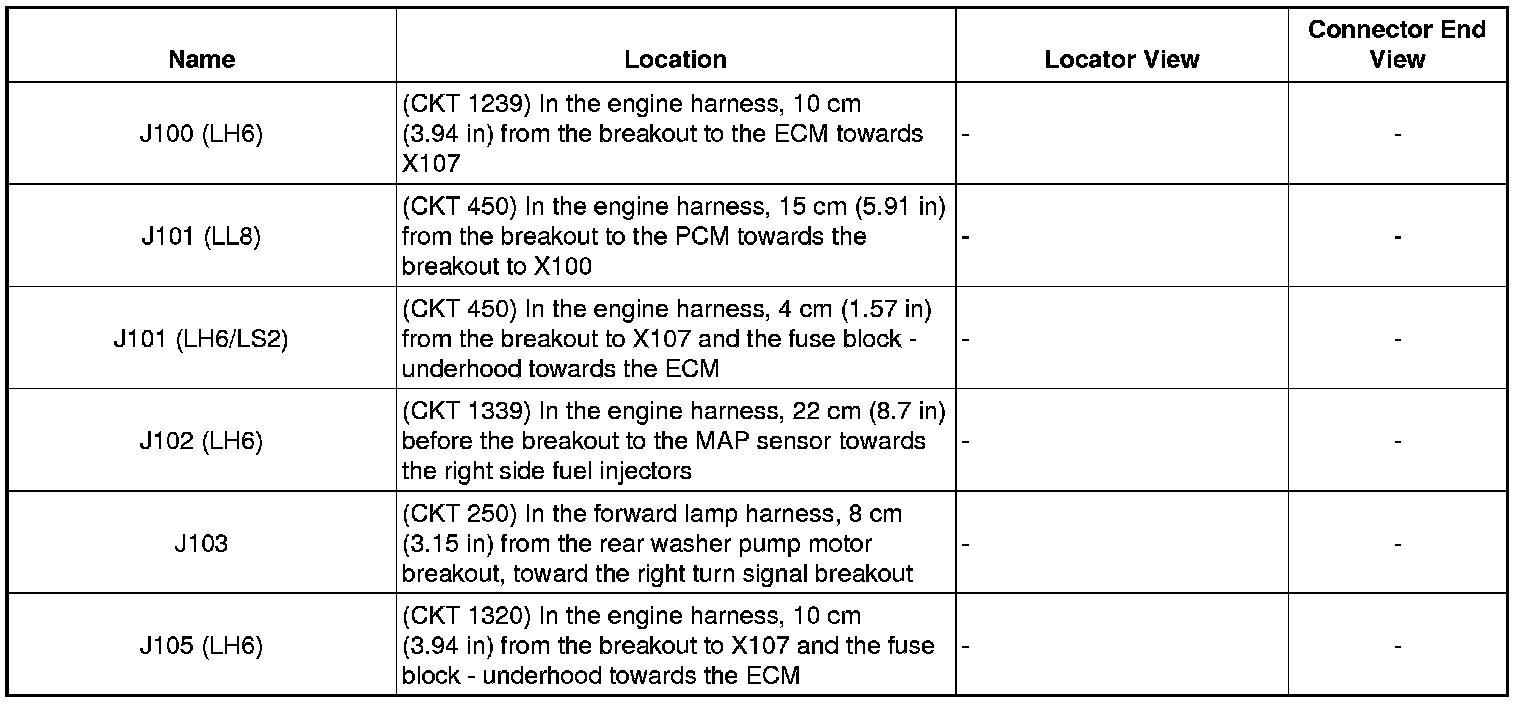

J101 - J105:

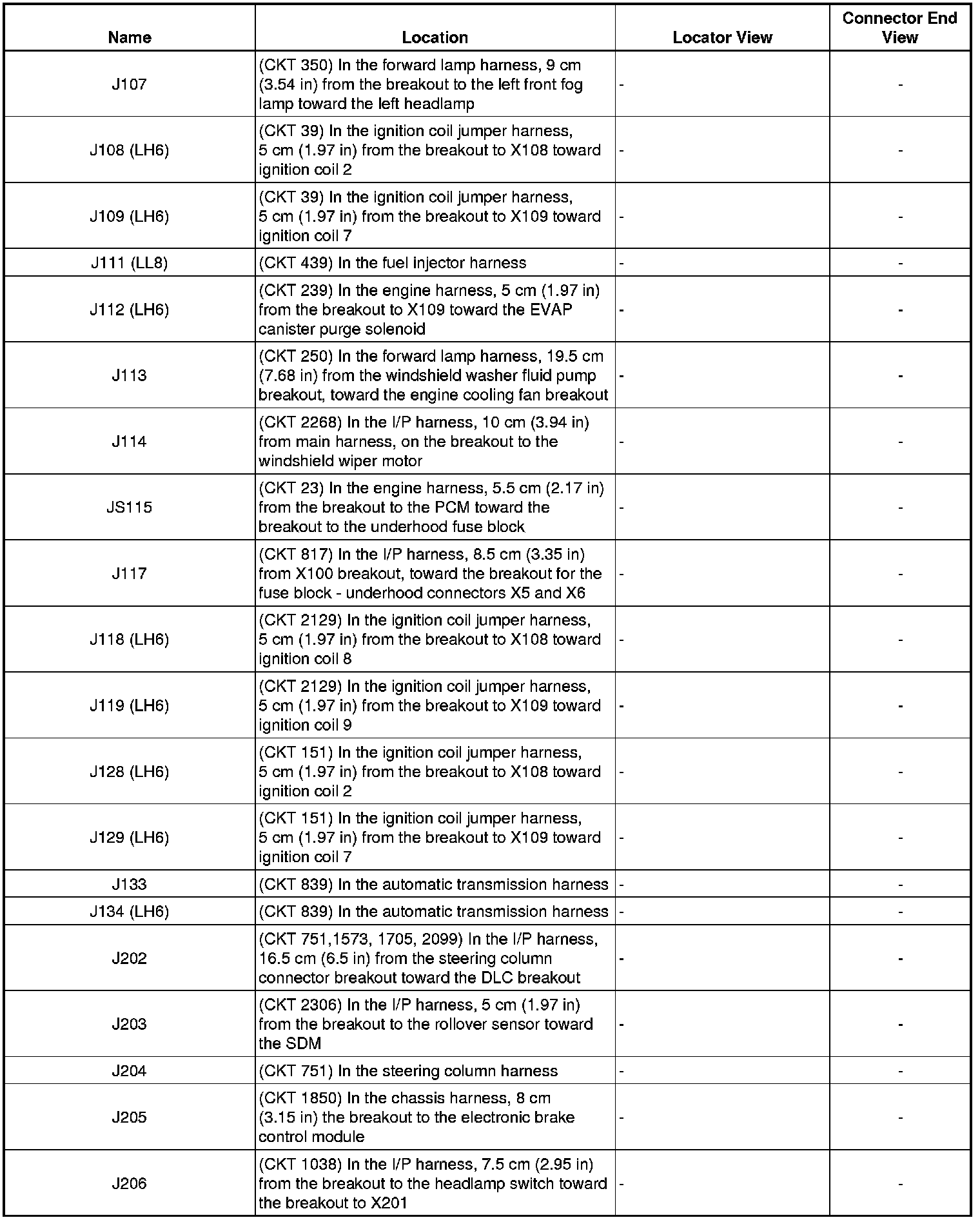

J107 - J206:

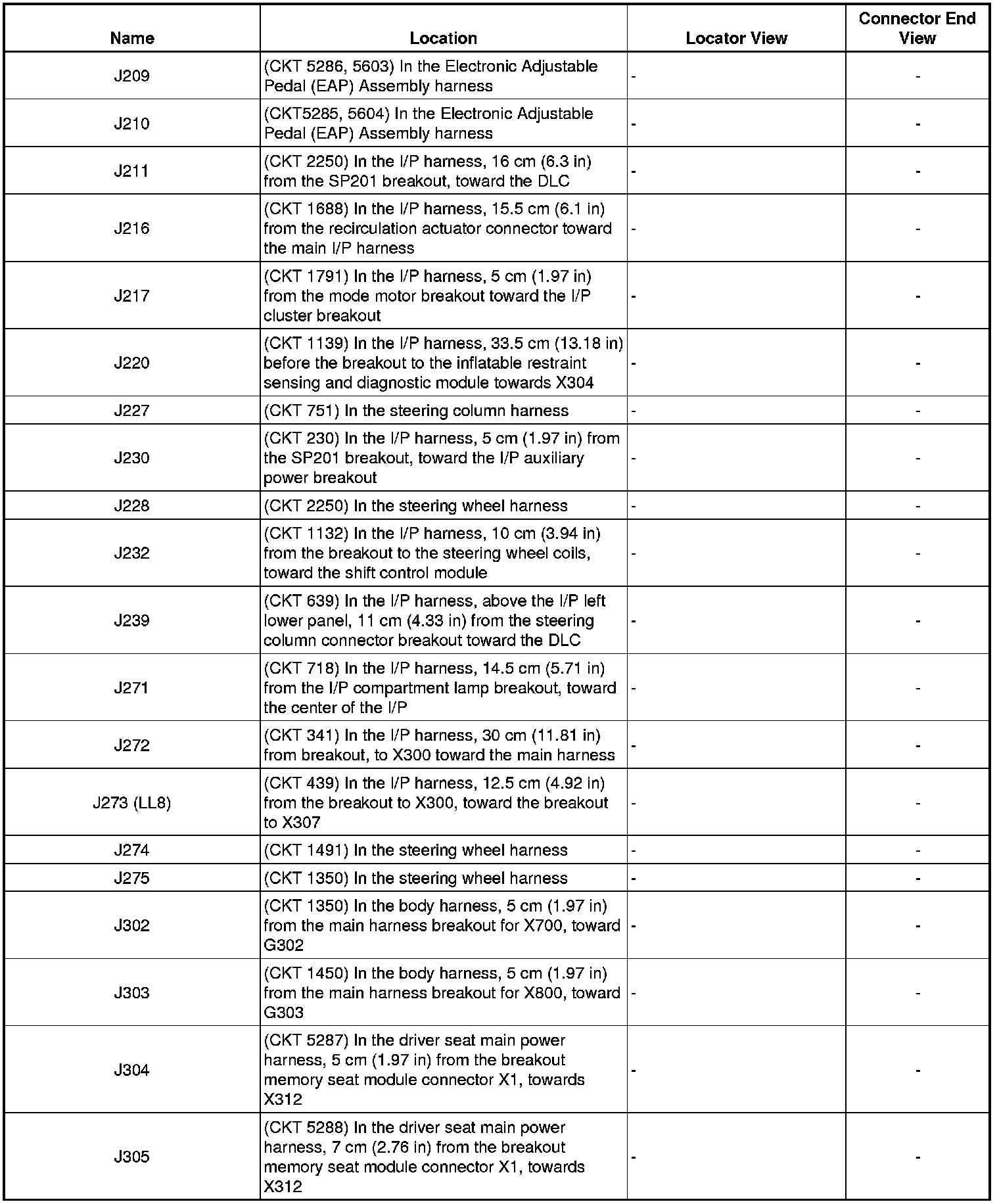

J209 - J305:

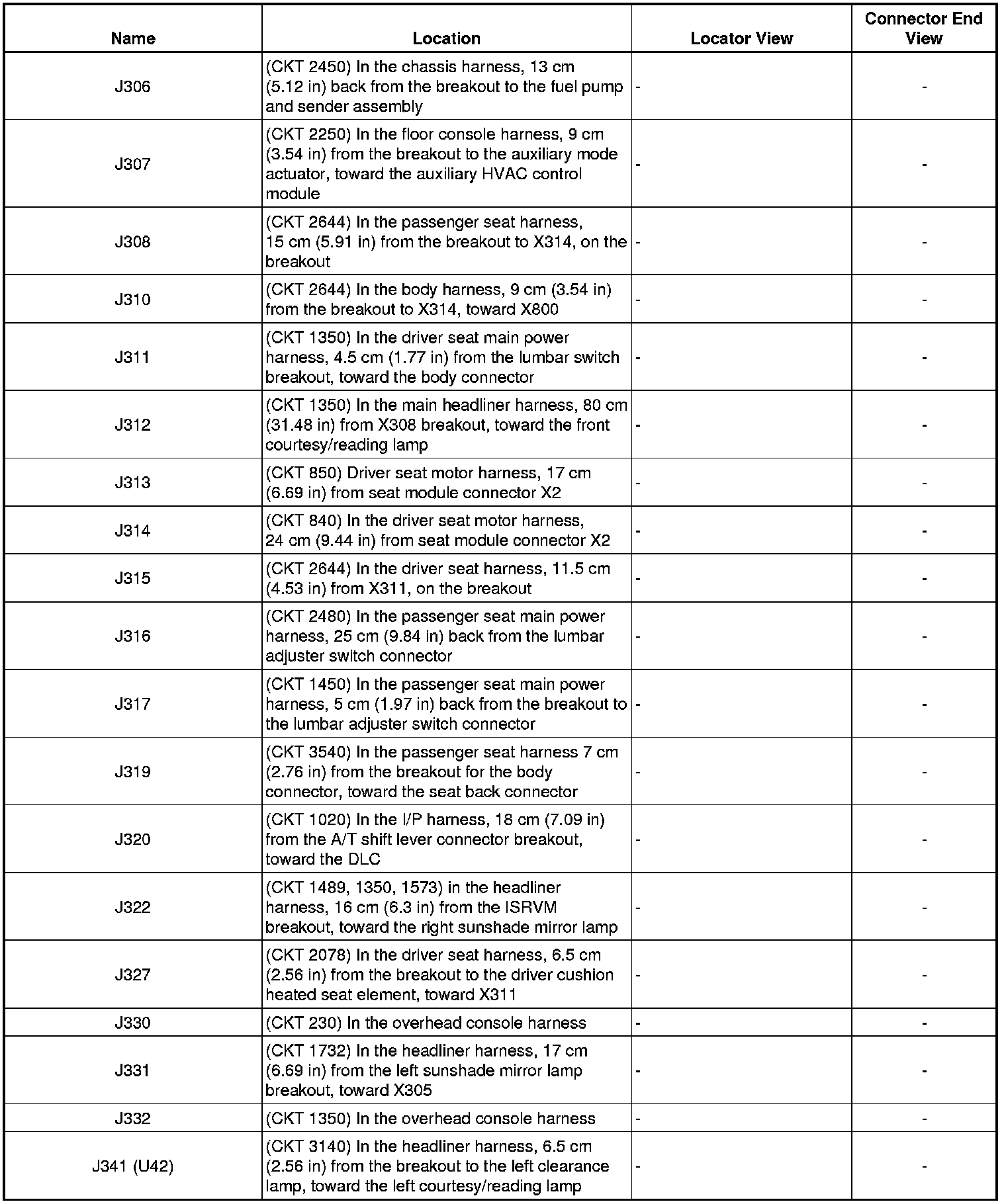

J306 - J341:

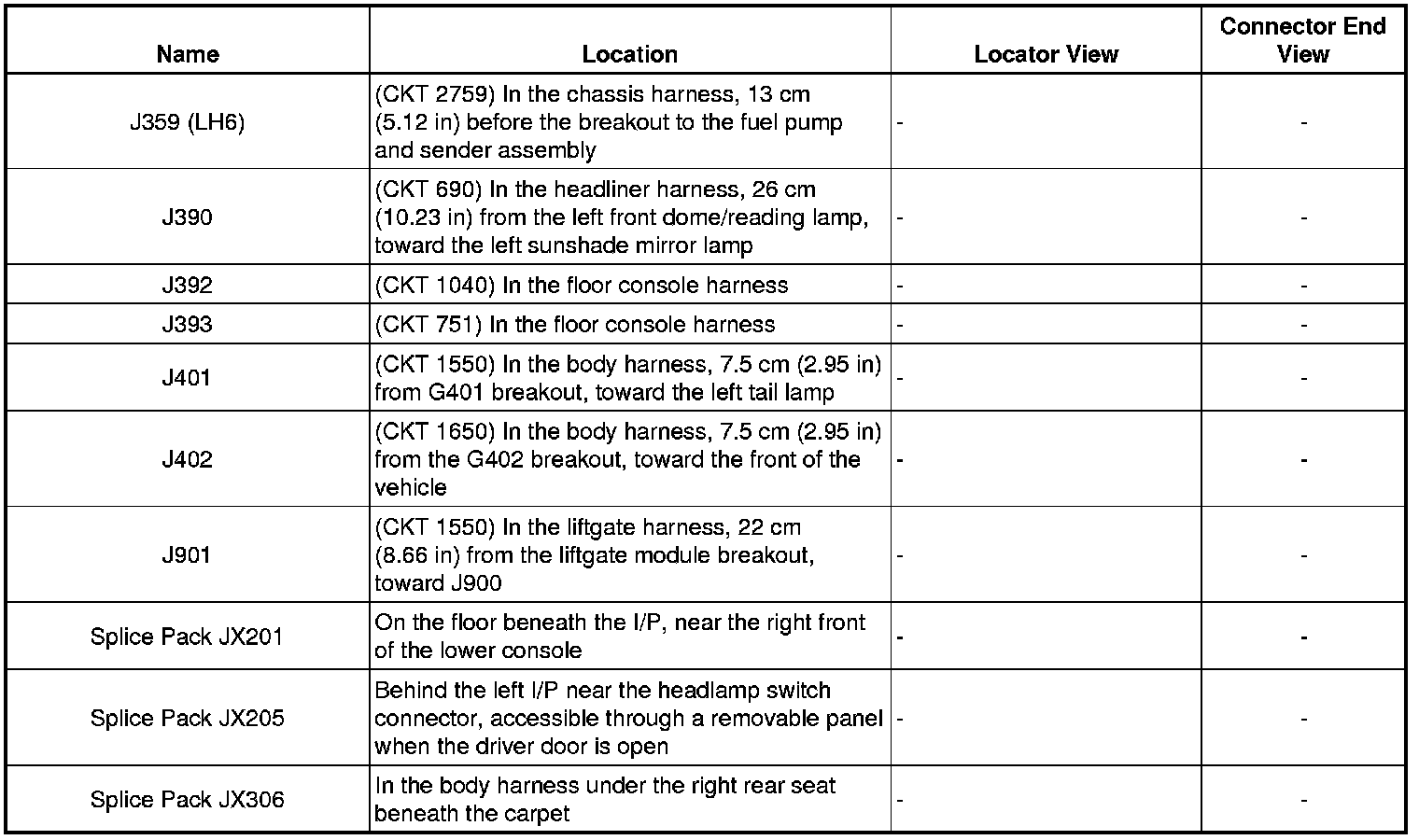

J359 - JX306:
