Turn Signal Lamp: Diagrams




Component Connector End Views

Park/Turn Signal Lamp - Left Front





Park/Turn Signal Lamp - Right Front

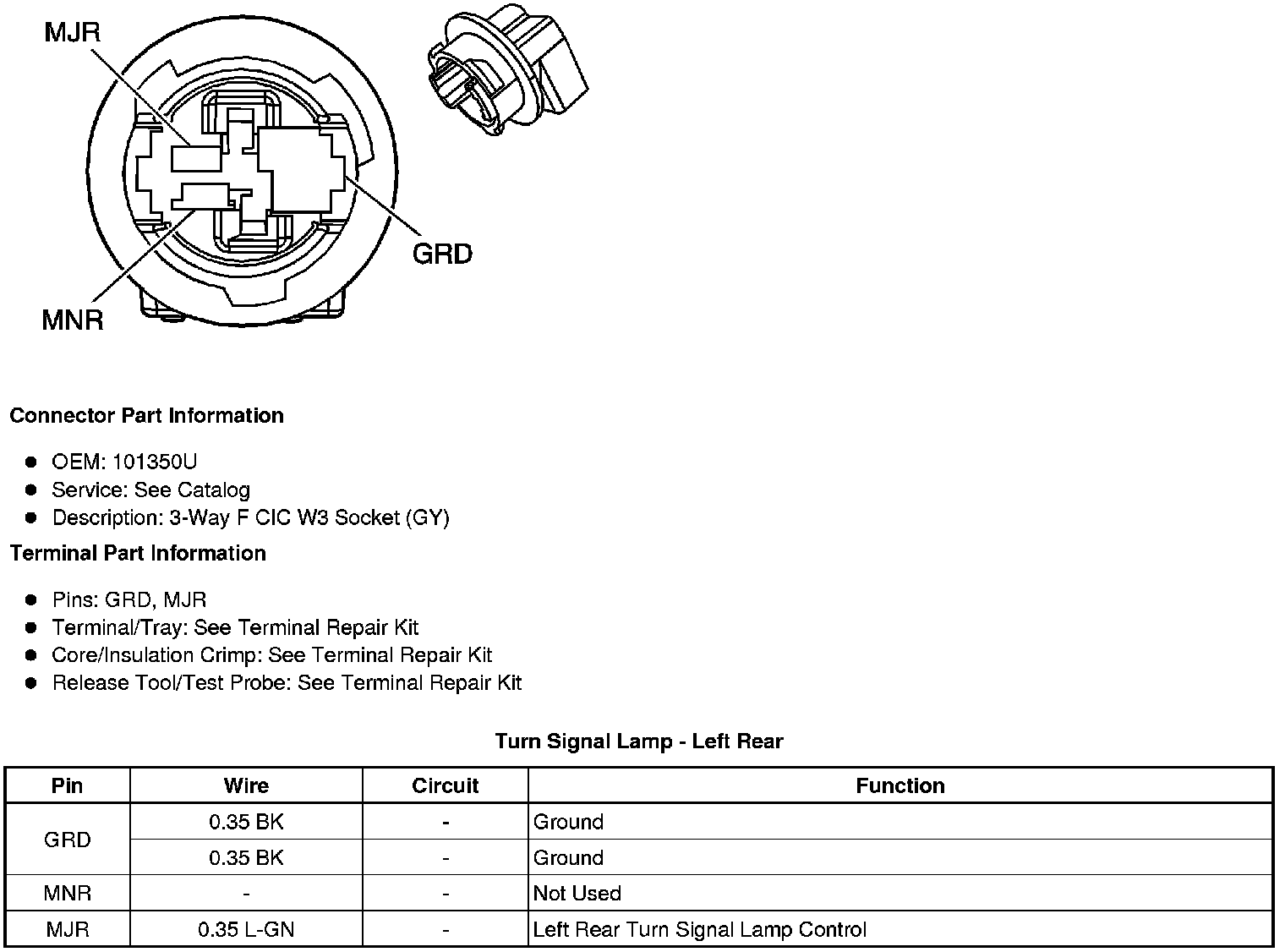

Turn Signal Lamp - Left Rear

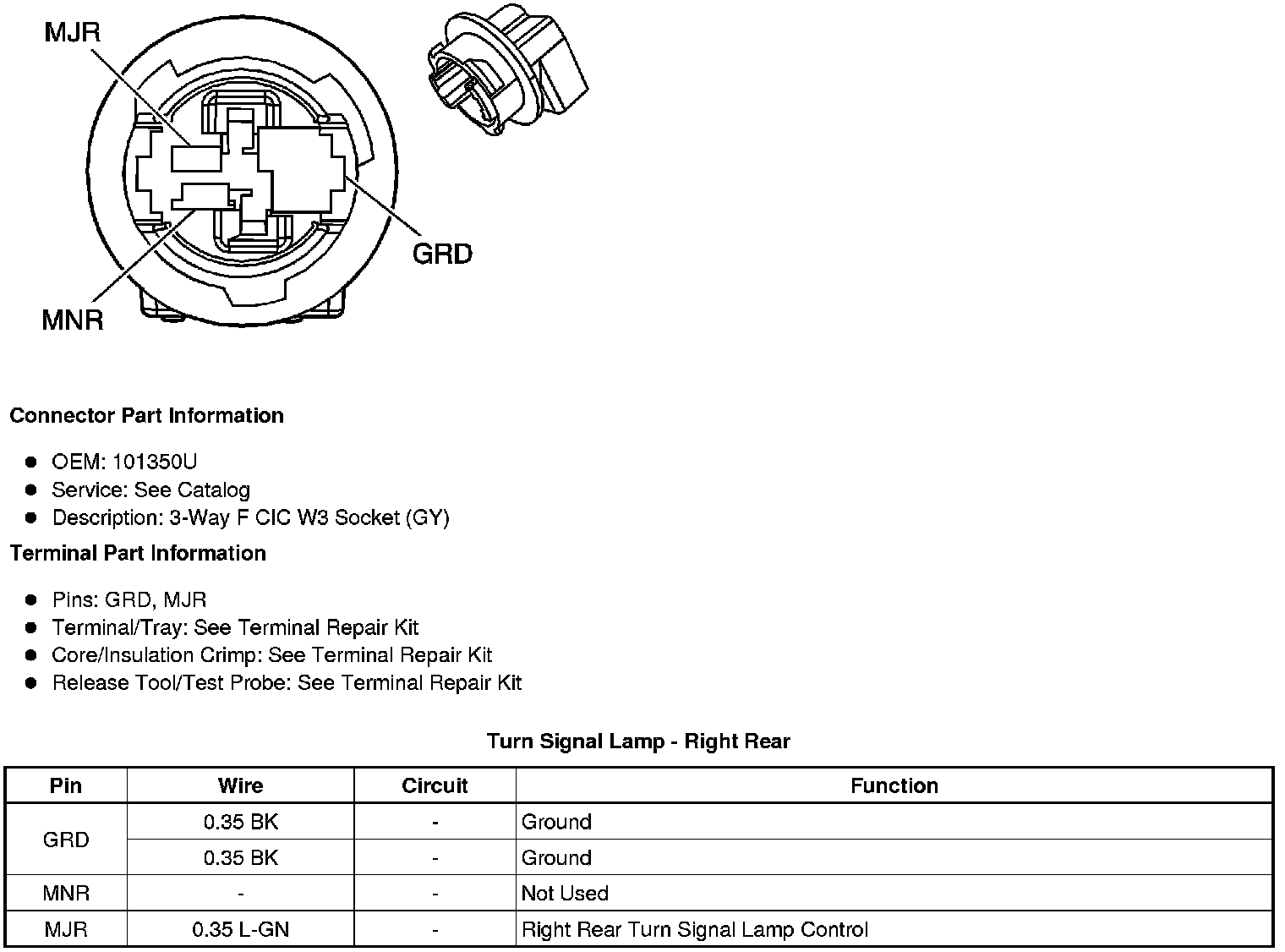

Turn Signal Lamp - Right Rear
