Parking Lamp: Diagrams




Component Connector End Views

Park/Turn Signal Lamp - Left Front

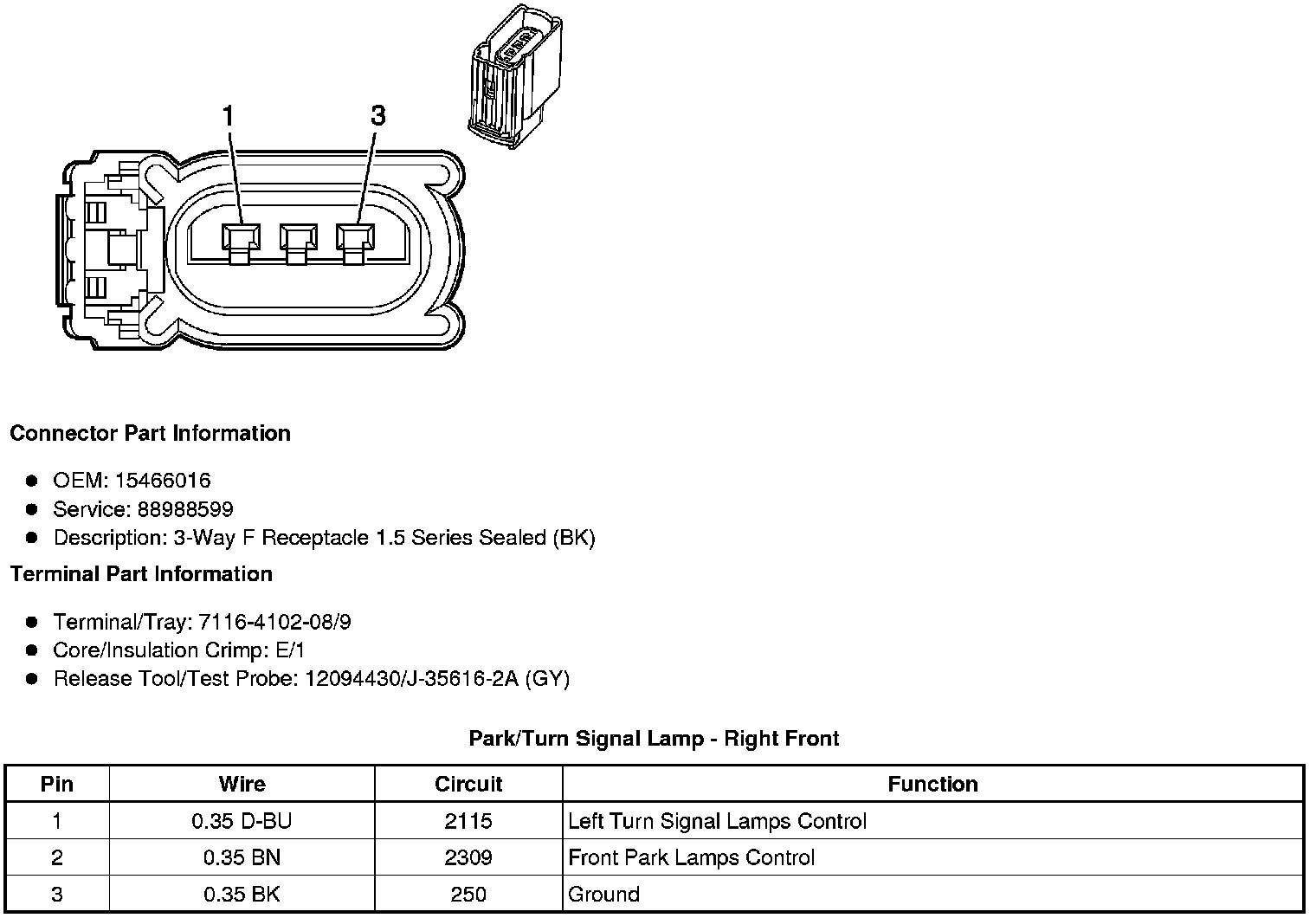

Park/Turn Signal Lamp - Right Front

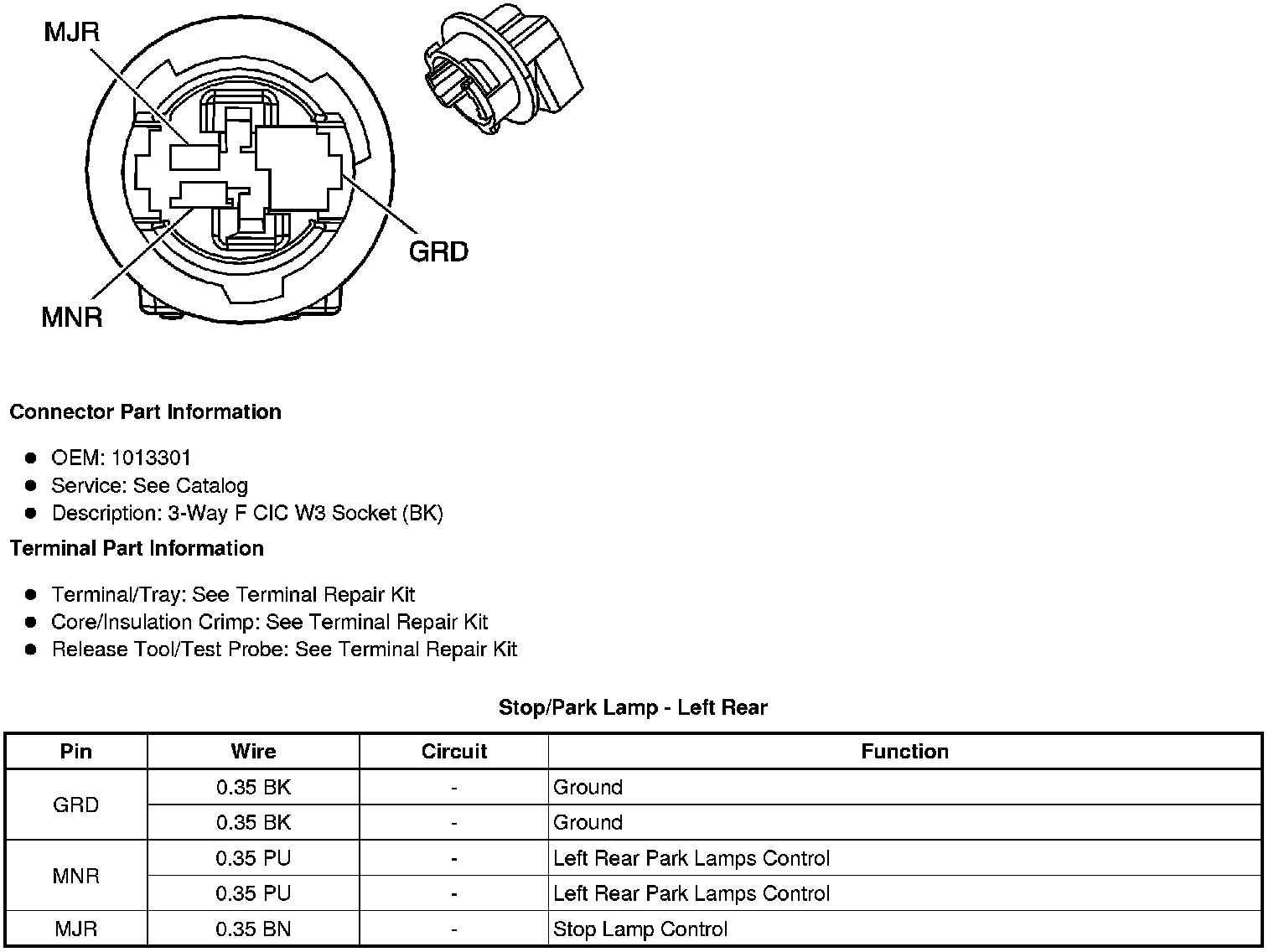

Stop/Park Lamp - Left Rear





Stop/Park Lamp - Right Rear
