Home >> Saab >> 2009 >> 9-7X L6-4.2L >> Repair and Diagnosis >> Lighting and Horns >> Diagrams >> Electrical Diagrams >> Headlights/Daytime Running Lights (DRL) Schematics >> Headlights/Daytime Running Lights (DRL) Schematics 1

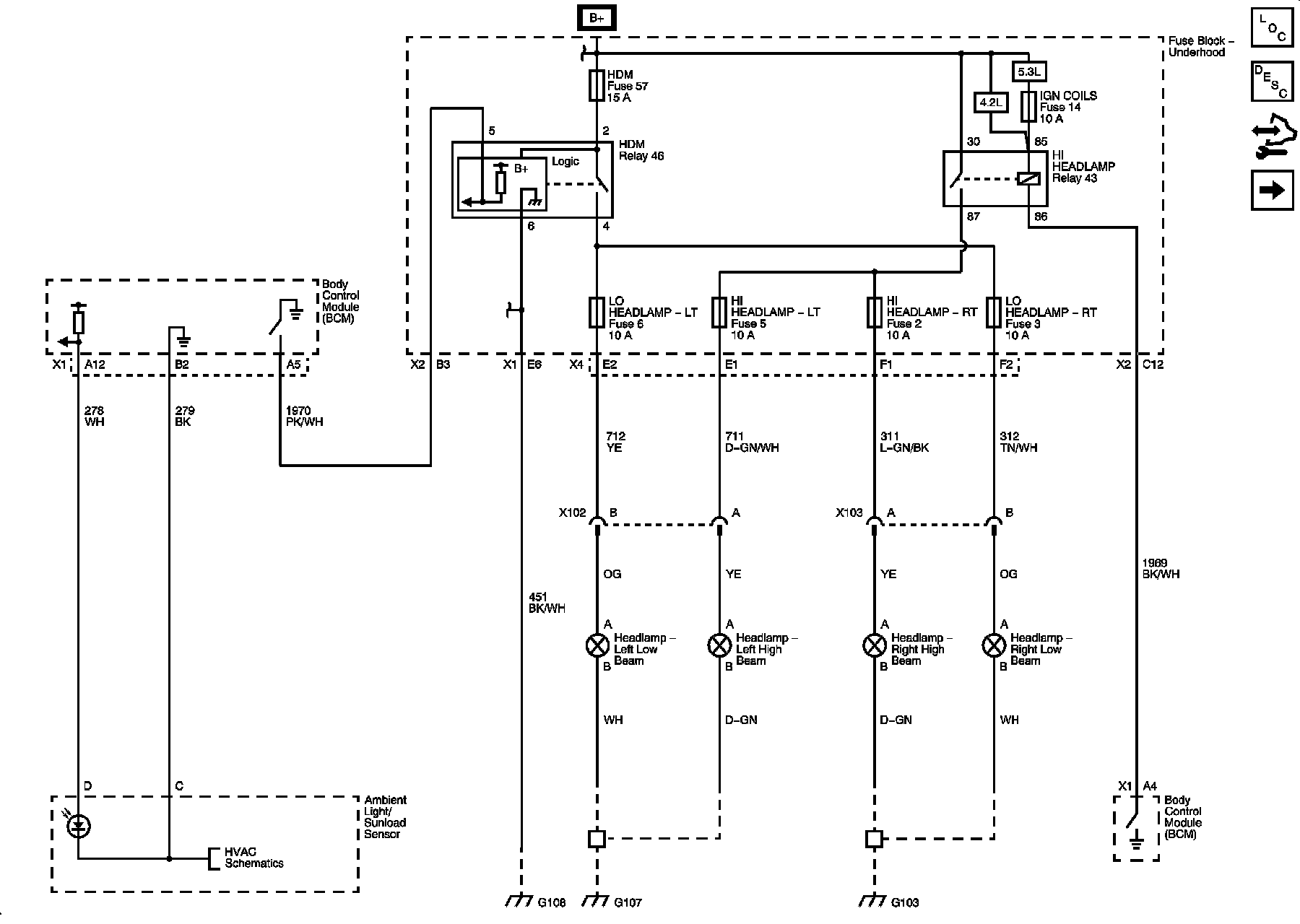

Headlights/Daytime Running Lights (DRL) Schematics 1




Headlights/Daytime Running Lights (DRL) Schematics

Headlamps (without TT6)
