Timing Chain and Sprocket Removal

Timing Chain and Sprocket Removal

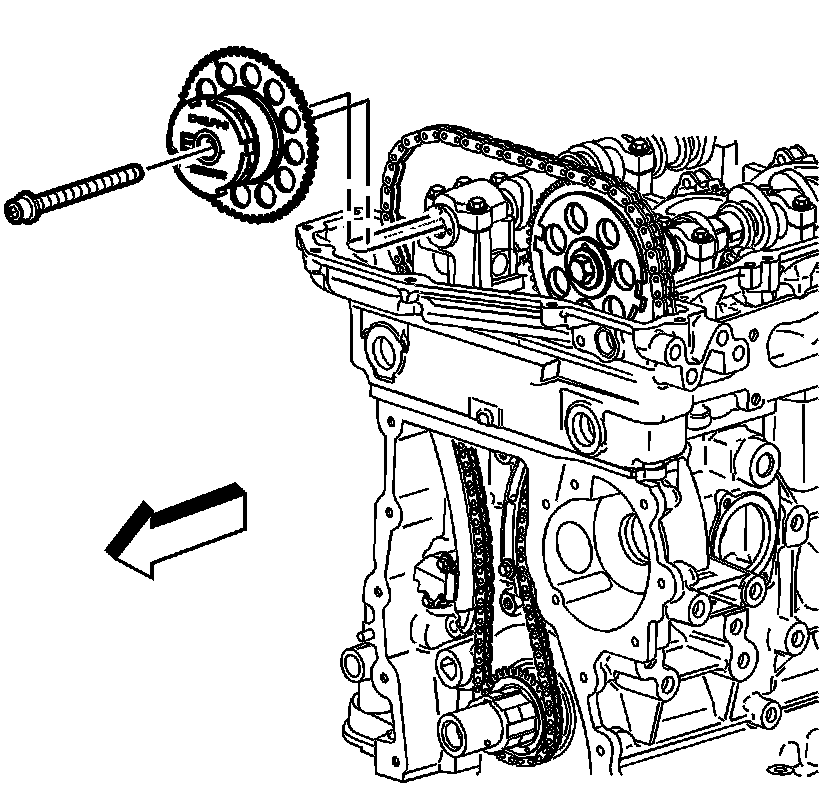

1. Remove the exhaust camshaft position actuator bolt.
2. Remove the exhaust camshaft position actuator.

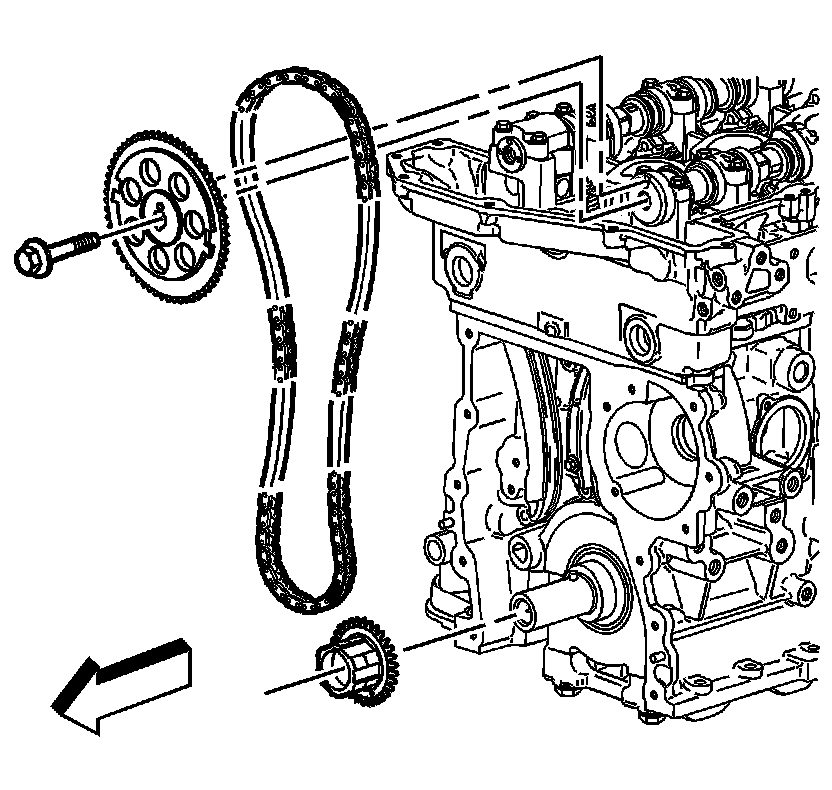

3. Remove the intake camshaft sprocket bolt.
4. Remove the intake camshaft sprocket.
5. Remove the timing chain.
6. Remove the crankshaft sprocket.
