Timing Chain and Sprocket Installation




Timing Chain and Sprocket Installation




1. Install a new camshaft cover seal.

Caution: Refer to Fastener Caution (Fastener Caution).

2. Install the camshaft cover and bolts. Tighten the camshaft cover bolts to 10 Nm (89 in. lbs.).

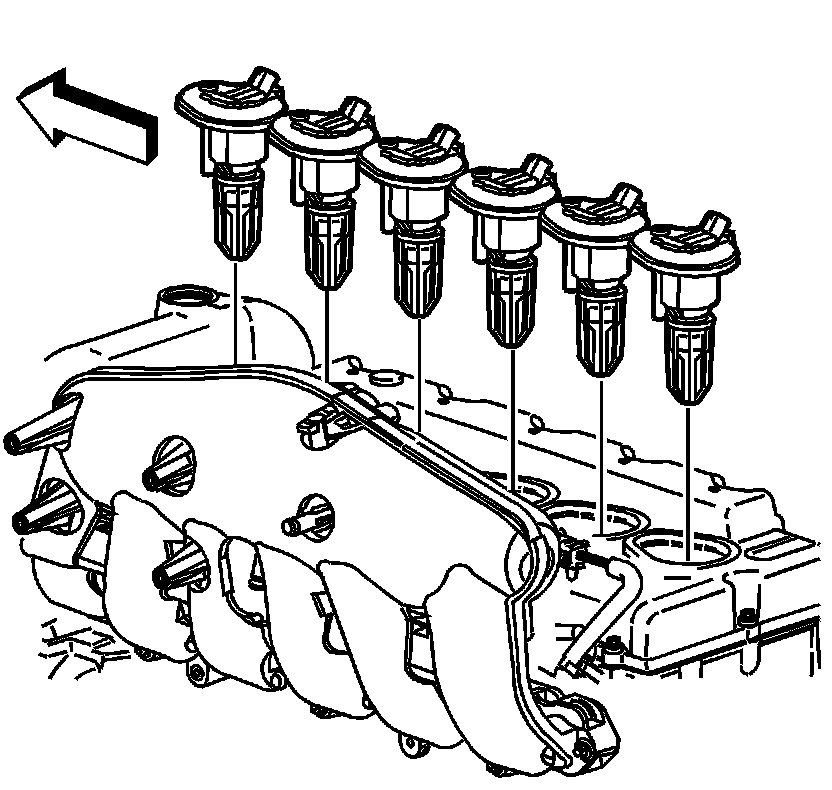

3. Install new ignition control module seals.
4. Install the ignition control modules and bolts. Tighten the ignition control module bolts to 10 Nm (89 in. lbs.).
