Engine Lift Bracket Installation




Engine Lift Bracket Installation

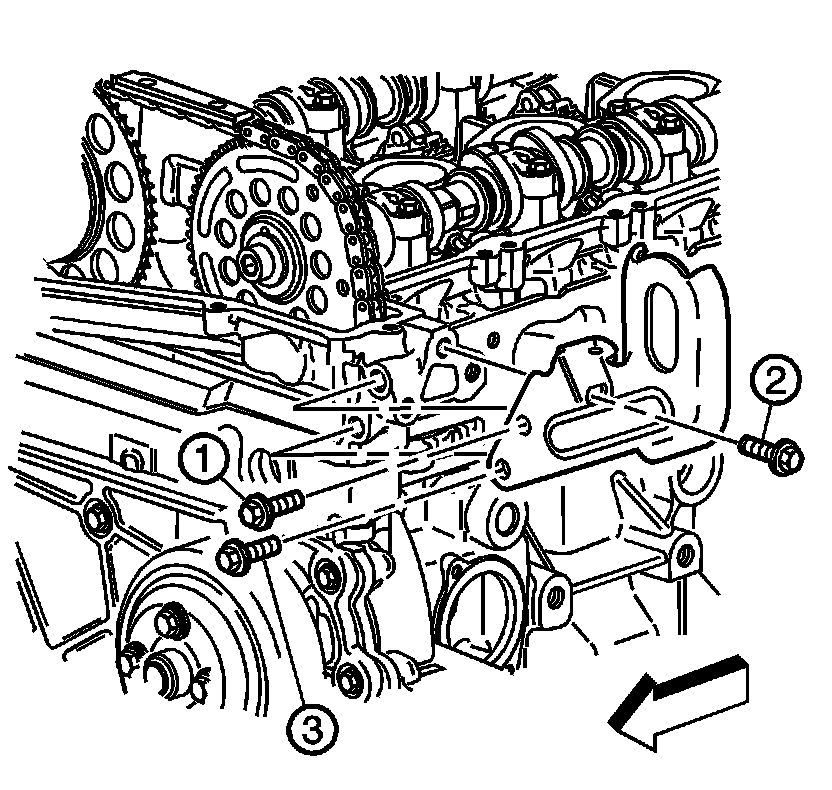

1. Install the engine lift bracket.

Caution: Refer to Fastener Caution (Fastener Caution).

2. Install the engine lift bracket bolts in sequence. Tighten the engine lift bracket bolts in sequence to 50 Nm (37 ft. lbs.).
