Engine Coolant Thermostat Housing Installation




Engine Coolant Thermostat Housing Installation

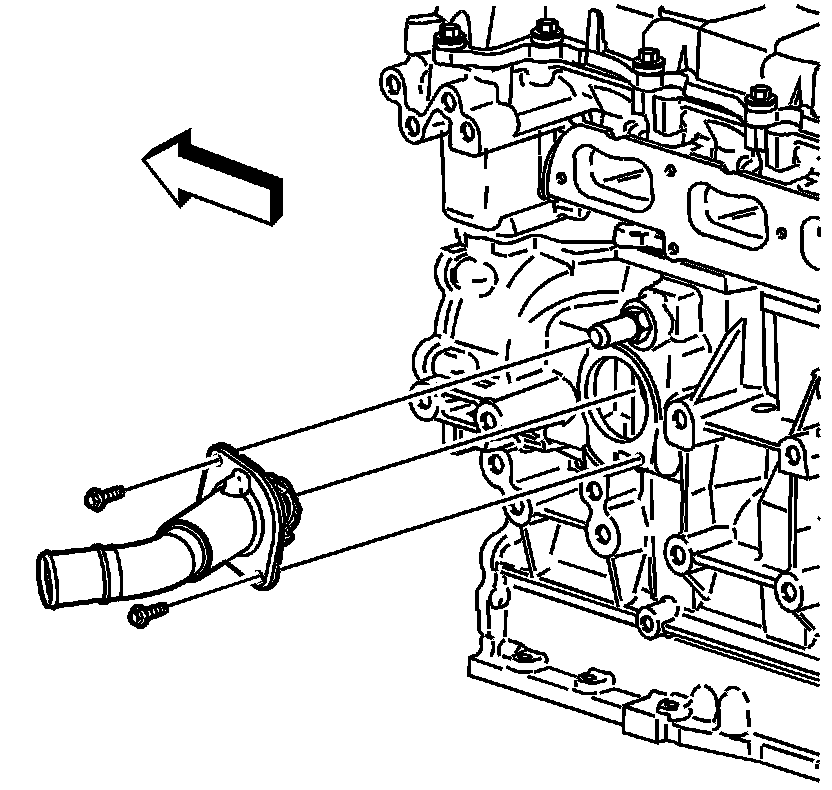

1. Install the thermostat housing.

Caution: Refer to Fastener Caution (Fastener Caution).

2. Install the thermostat housing bolts. Tighten the thermostat housing bolts to 10 Nm (89 in. lbs.).
