Camshaft Position Actuator Solenoid Valve Installation

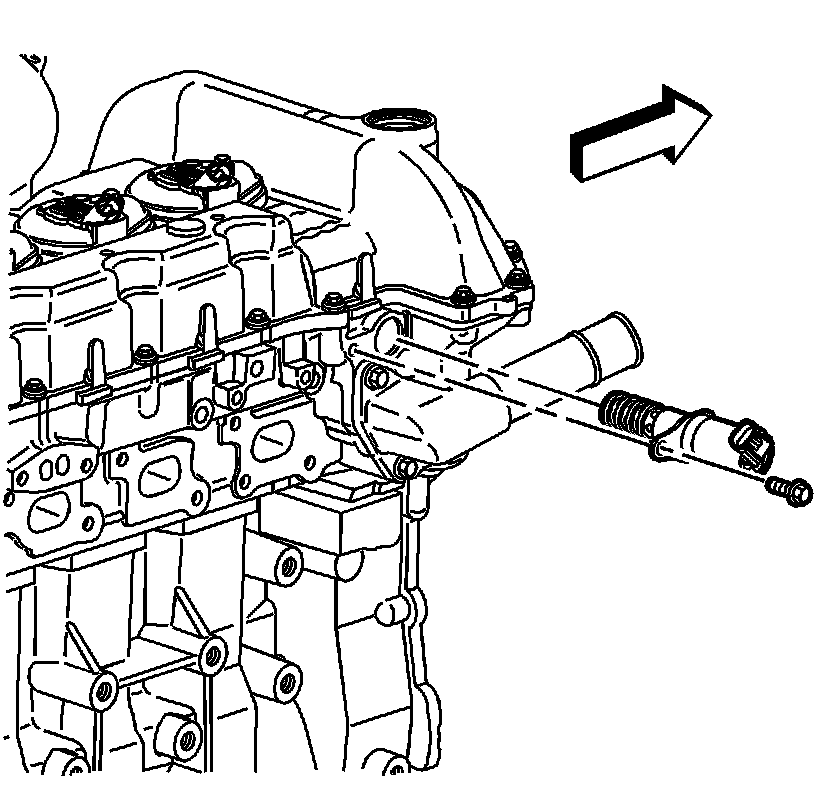

Camshaft Position Actuator Solenoid Valve Installation




1. Apply clean engine oil to the camshaft position actuator valve hole.
2. Install the camshaft position actuator valve.
3. Add sealant GM P/N 12346004 (Canadian P/N 10953480) to the camshaft position actuator valve bolt threads.

Caution: Refer to Fastener Caution (Fastener Caution).

4. Install the camshaft position actuator valve bolt. Tighten the camshaft position actuator valve bolt to 10 Nm (89 in. lbs.).
