X800 - X899
Door Component Views

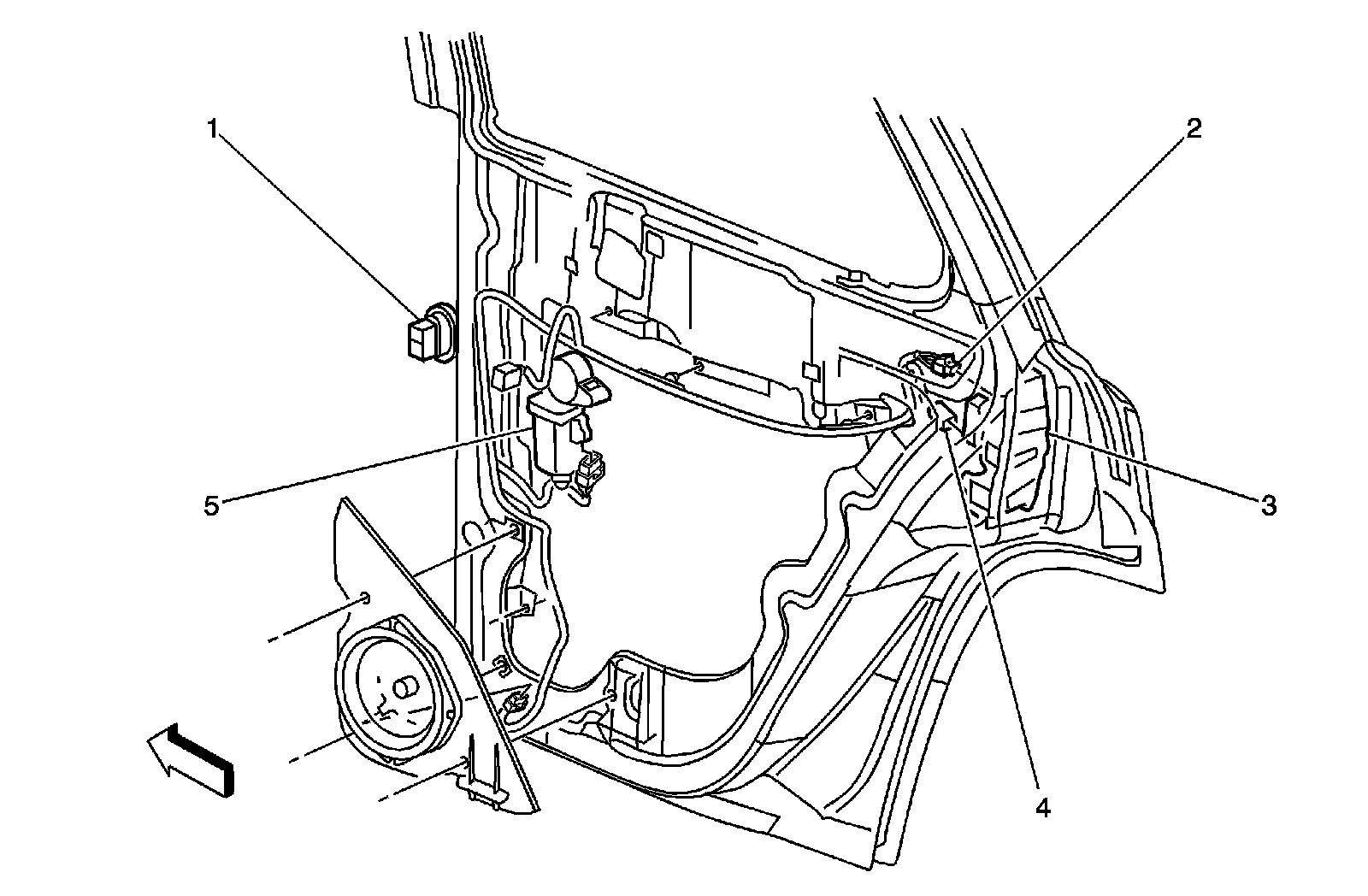

Right Rear Door Components
1 - X800
2 - Door Latch Assembly - Right Rear X1
3 - Door Latch Assembly - Right Rear
4 - Door Latch Assembly - Right Rear X2
5 - Window Motor - Right Rear
Door Component Views
Right Rear Door Components
1 - X800
2 - Door Latch Assembly - Right Rear X1
3 - Door Latch Assembly - Right Rear
4 - Door Latch Assembly - Right Rear X2
5 - Window Motor - Right Rear
