X225
X225
Inline Harness Connector End Views

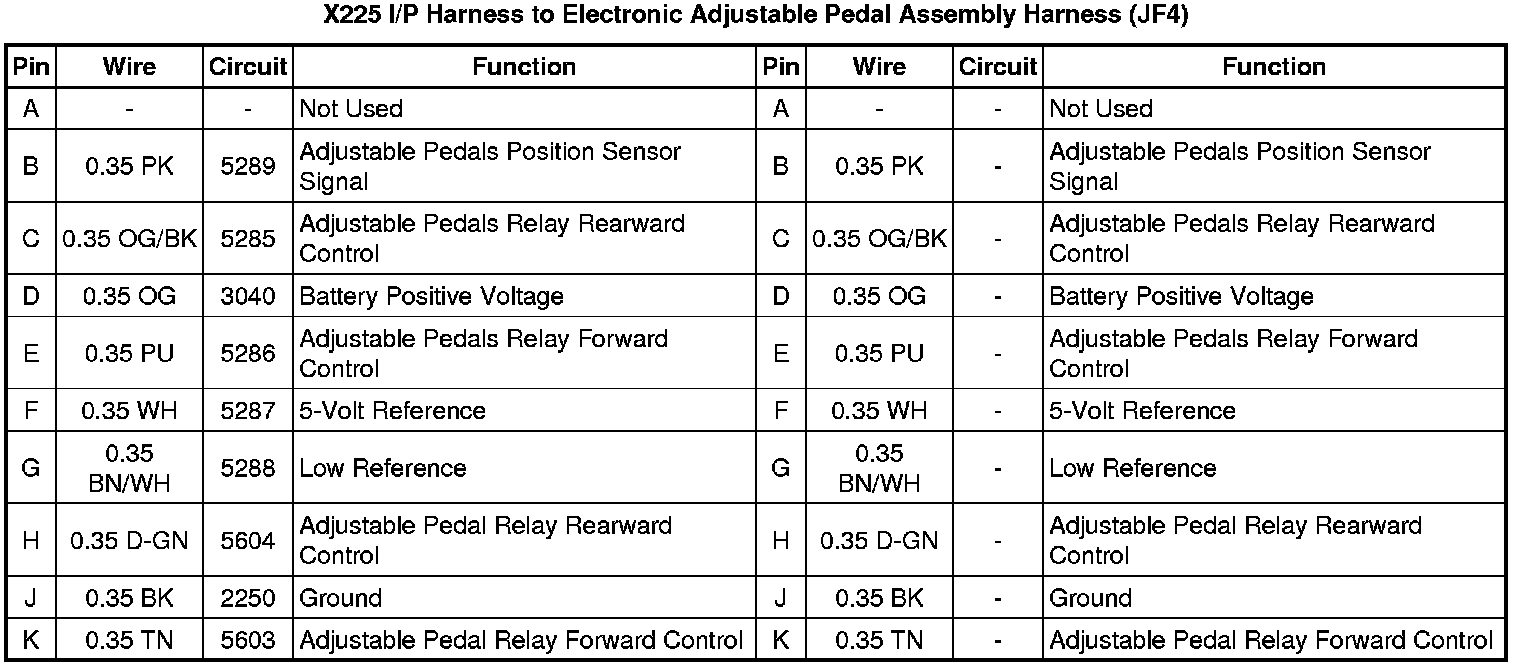

X225 I/P Harness to Electronic Adjustable Pedal Assembly Harness (JF4)
