Air Door Actuator / Motor, HVAC




Component Connector End Views

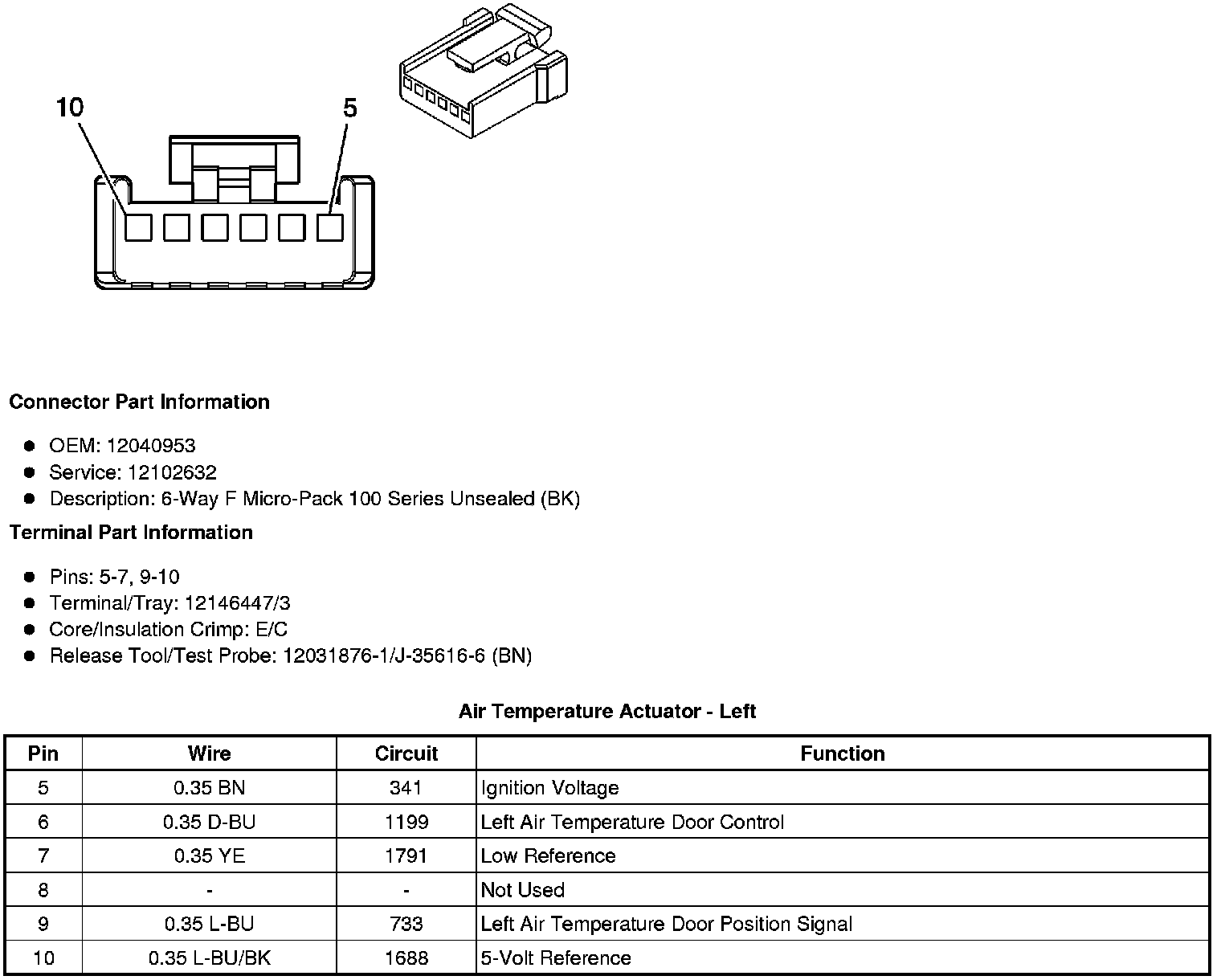

Air Temperature Actuator - Left

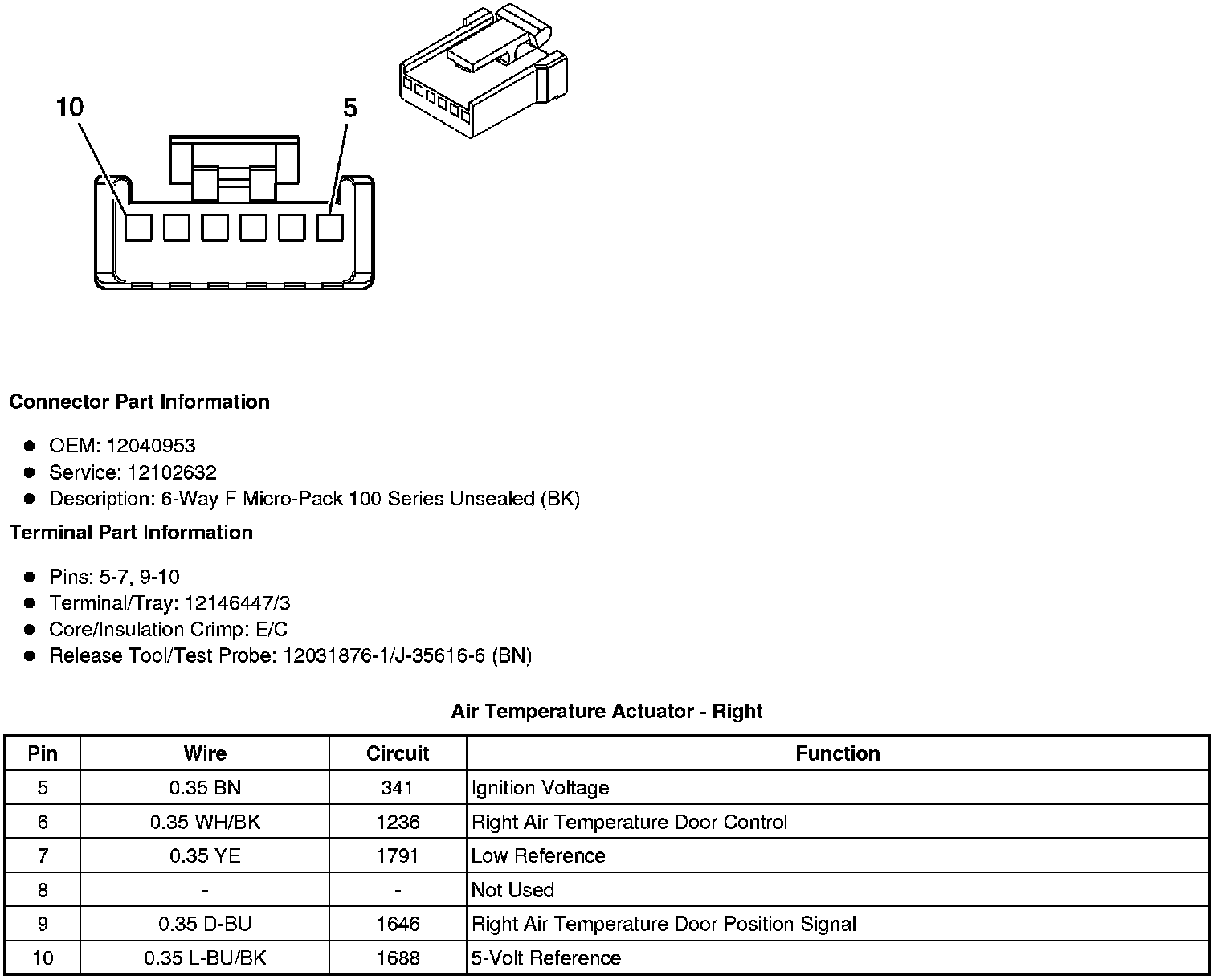

Air Temperature Actuator - Right

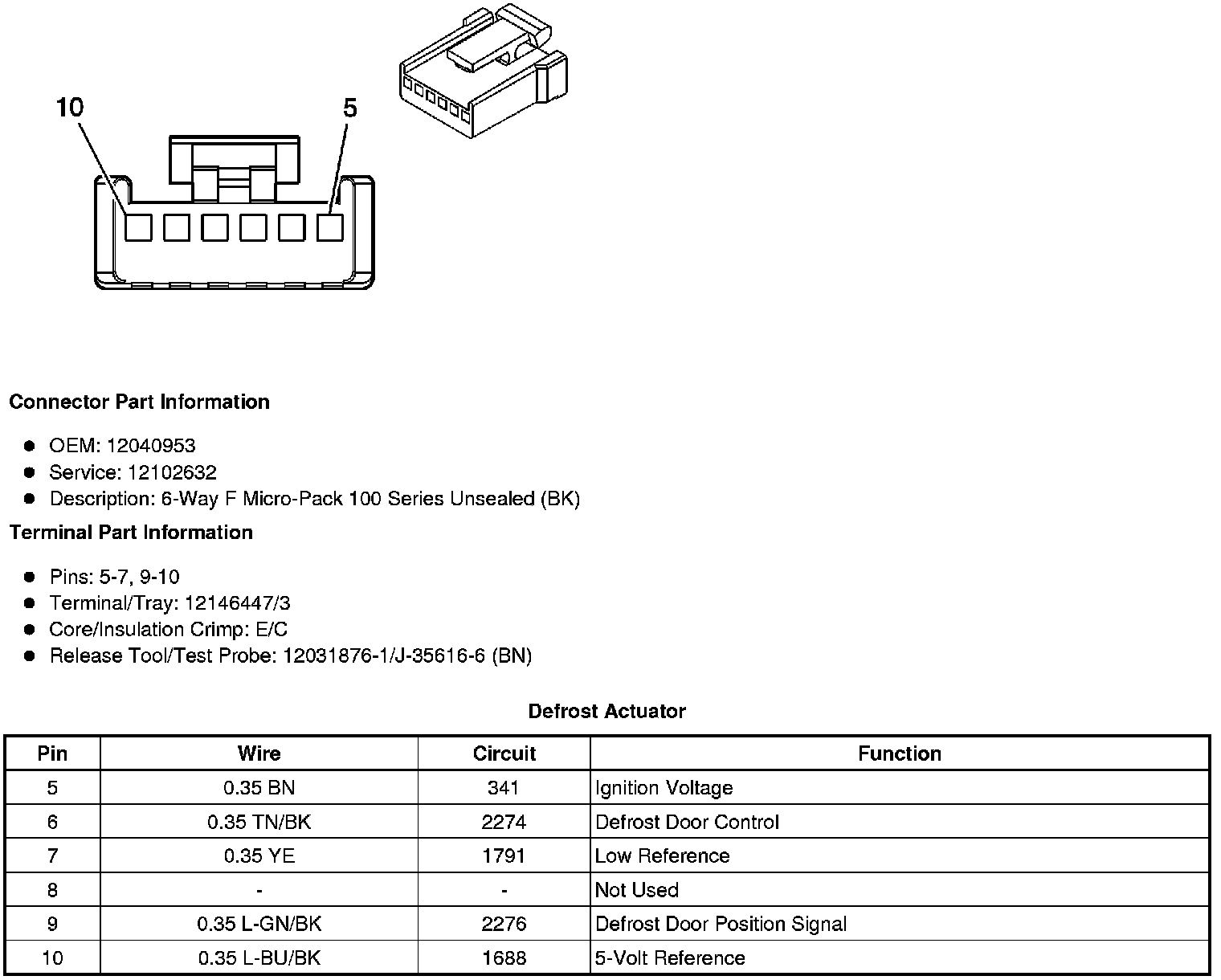

Defrost Actuator





Mode Actuator

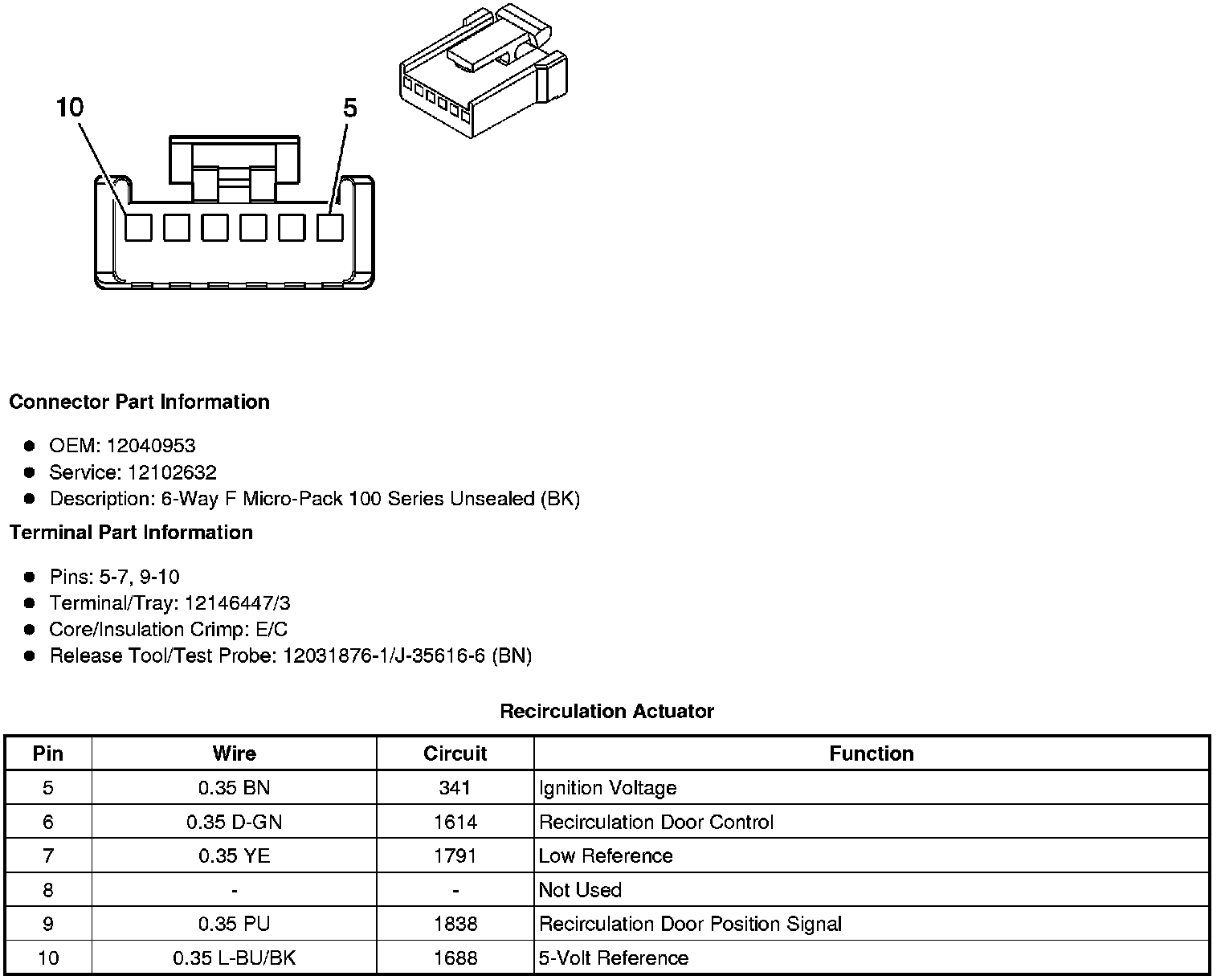

Recirculation Actuator





Rollover Sensor
