Home >> Saab >> 2009 >> 9-7X L6-4.2L >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Diagrams >> Electrical Diagrams

Electrical Diagrams




Antilock Brake System Schematics

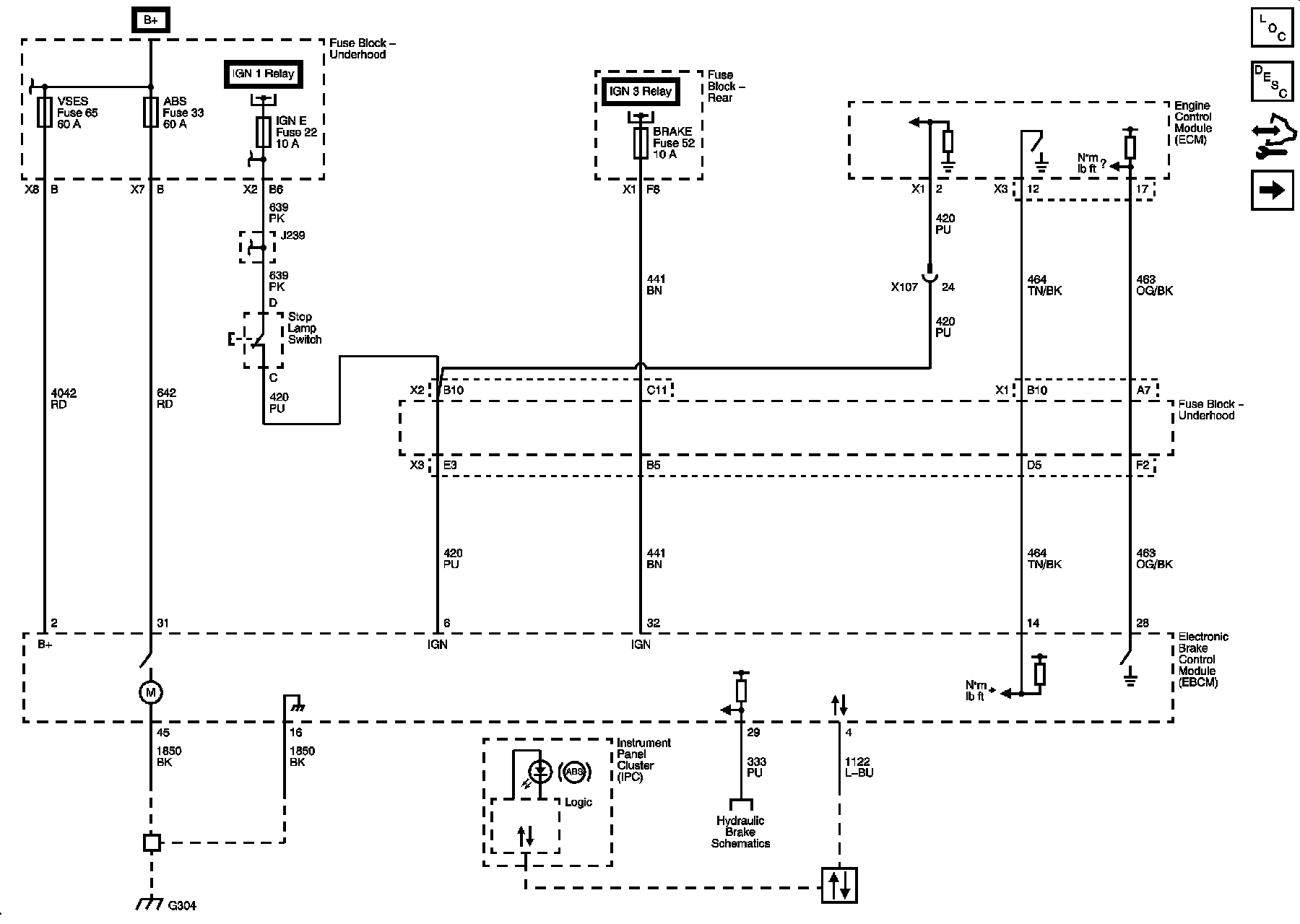

EBCM Power, Ground, Serial Data, Indicator, and Signal Circuits

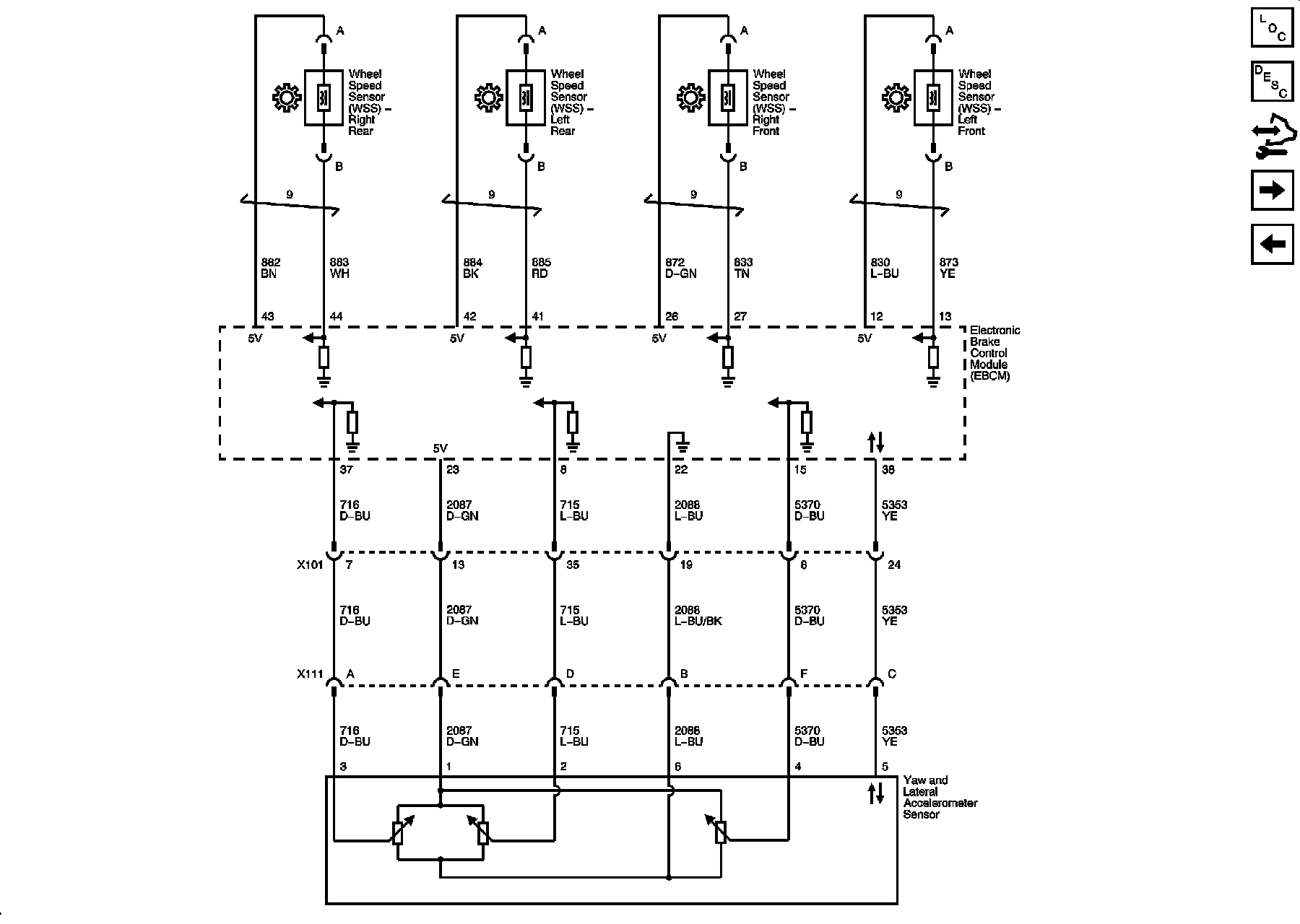

Wheel Speed Sensors and Yaw Rate/Lateral Acceleration Sensor





Steering Wheel Speed/Position Sensor and Traction Control Switch
