Radio/Stereo: Diagrams




Component Connector End Views

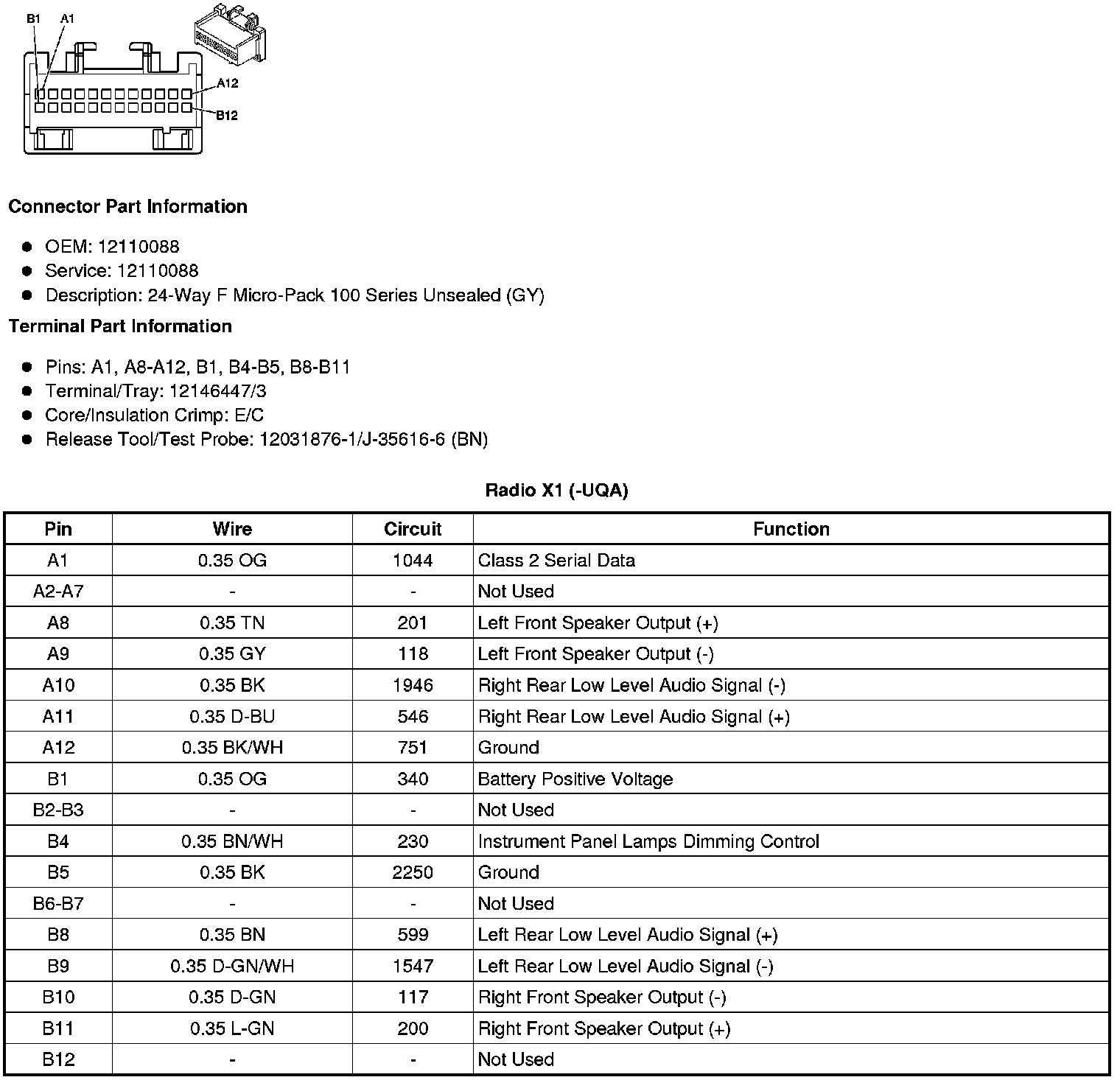

Radio X1 (-UQA)

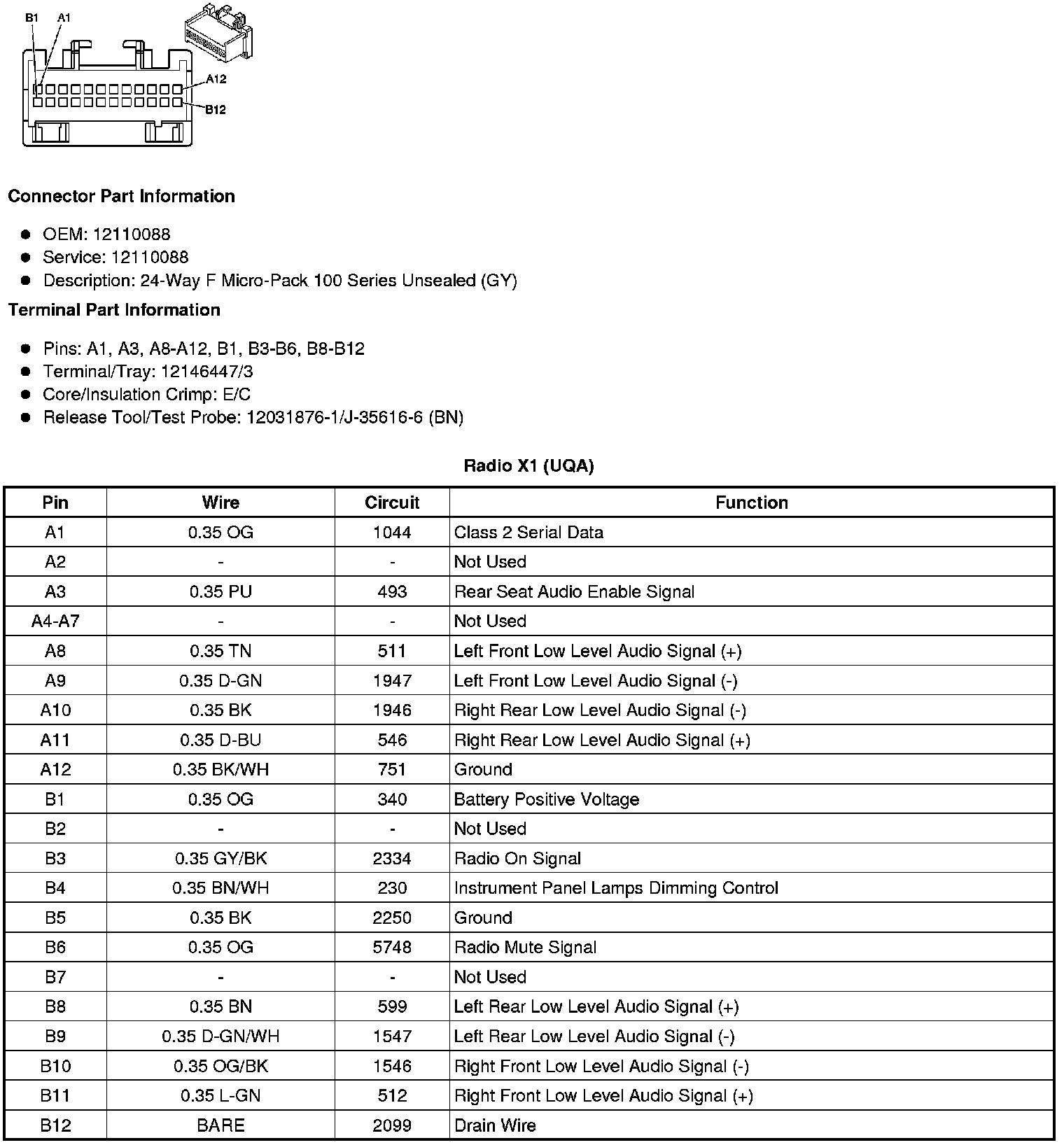

Radio X1 (UQA)

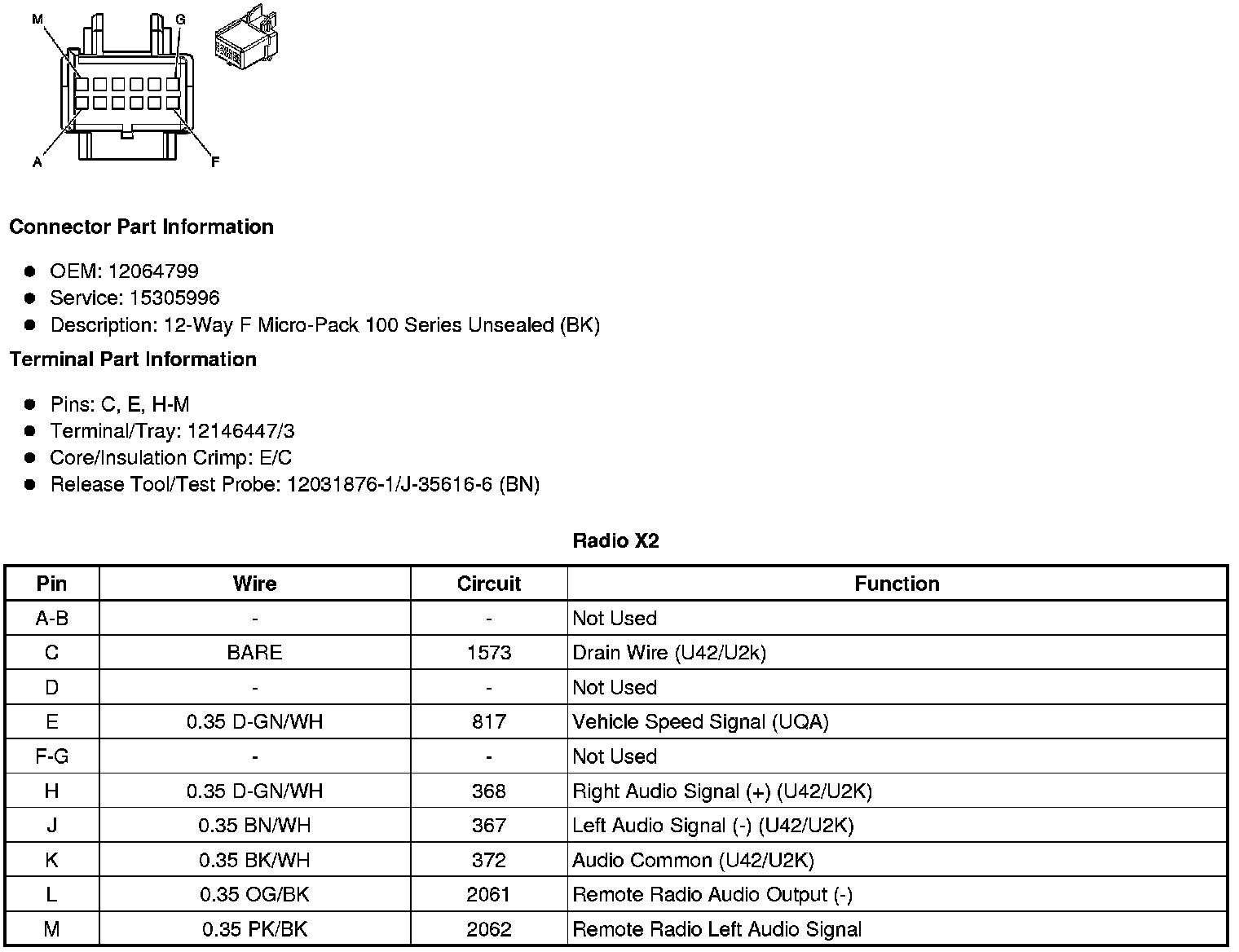

Radio X2

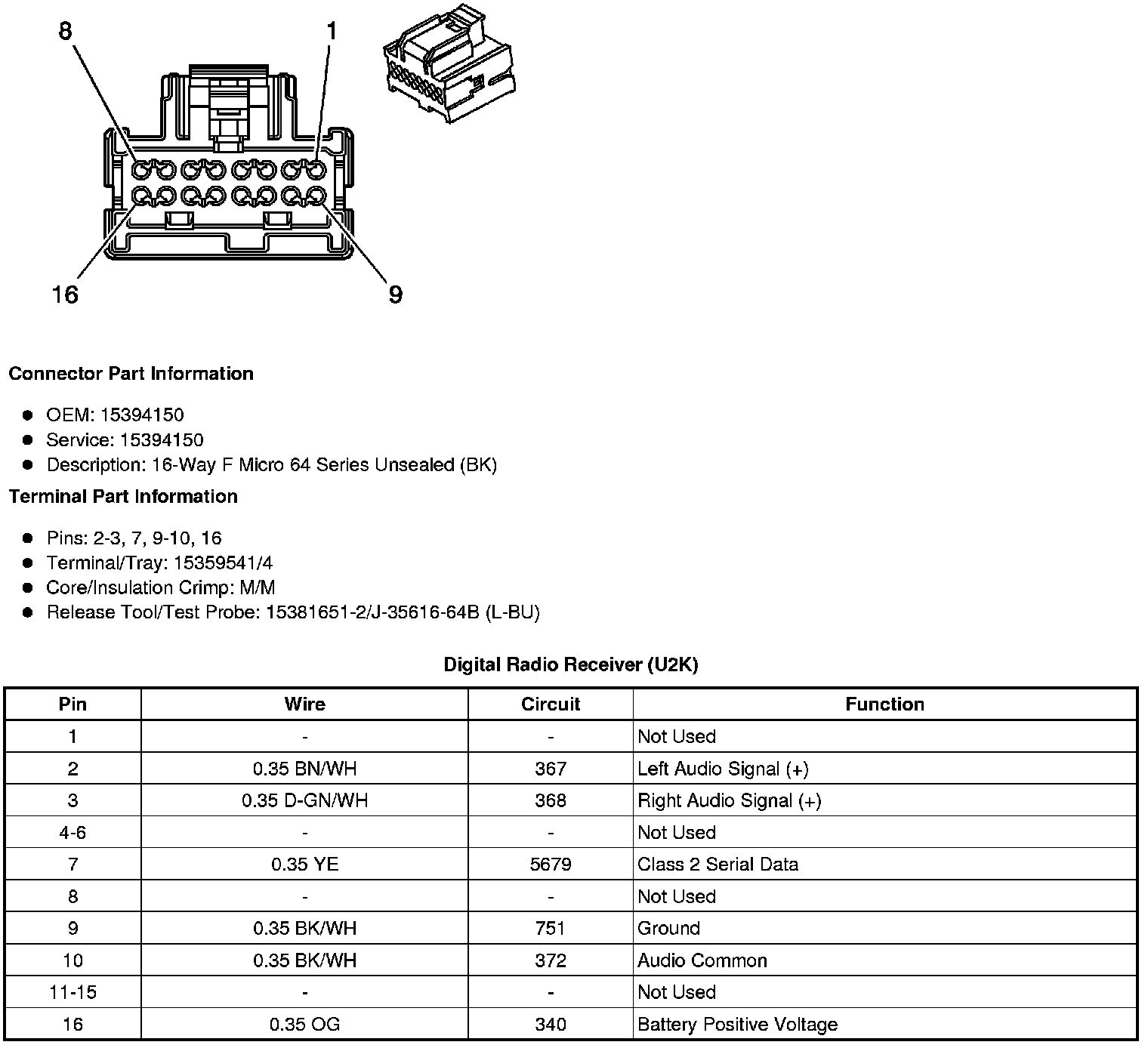

Digital Radio Receiver (U2K)
