Home >> Saab >> 2009 >> 9-7X L6-4.2L >> Repair and Diagnosis >> Accessories and Optional Equipment >> Pedal Positioning System >> Diagrams >> Electrical Diagrams

Electrical Diagrams

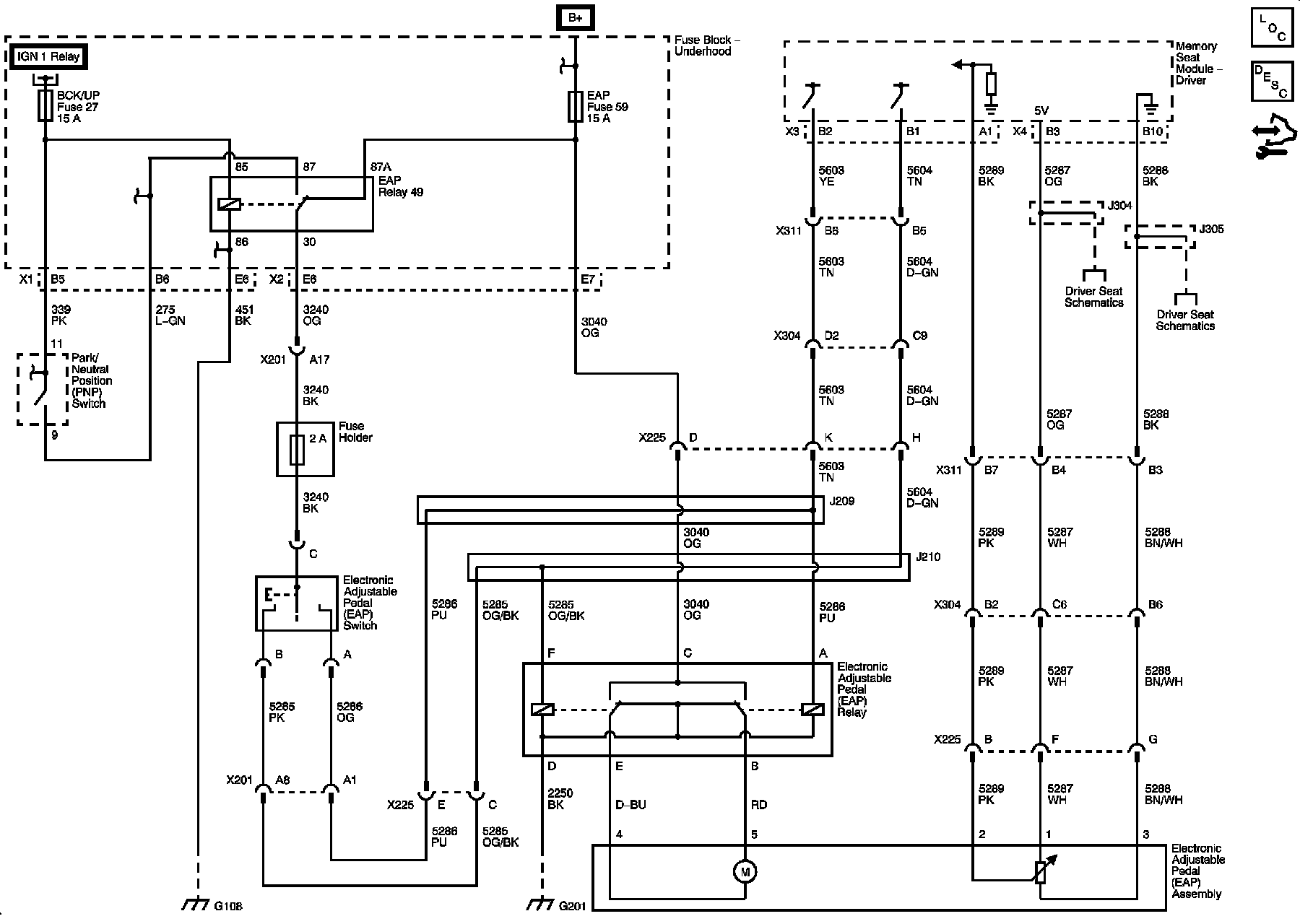

Adjustable Pedal Schematics
