Trailer Connector/Provision Schematics

Trailer Connector/Provision Schematics

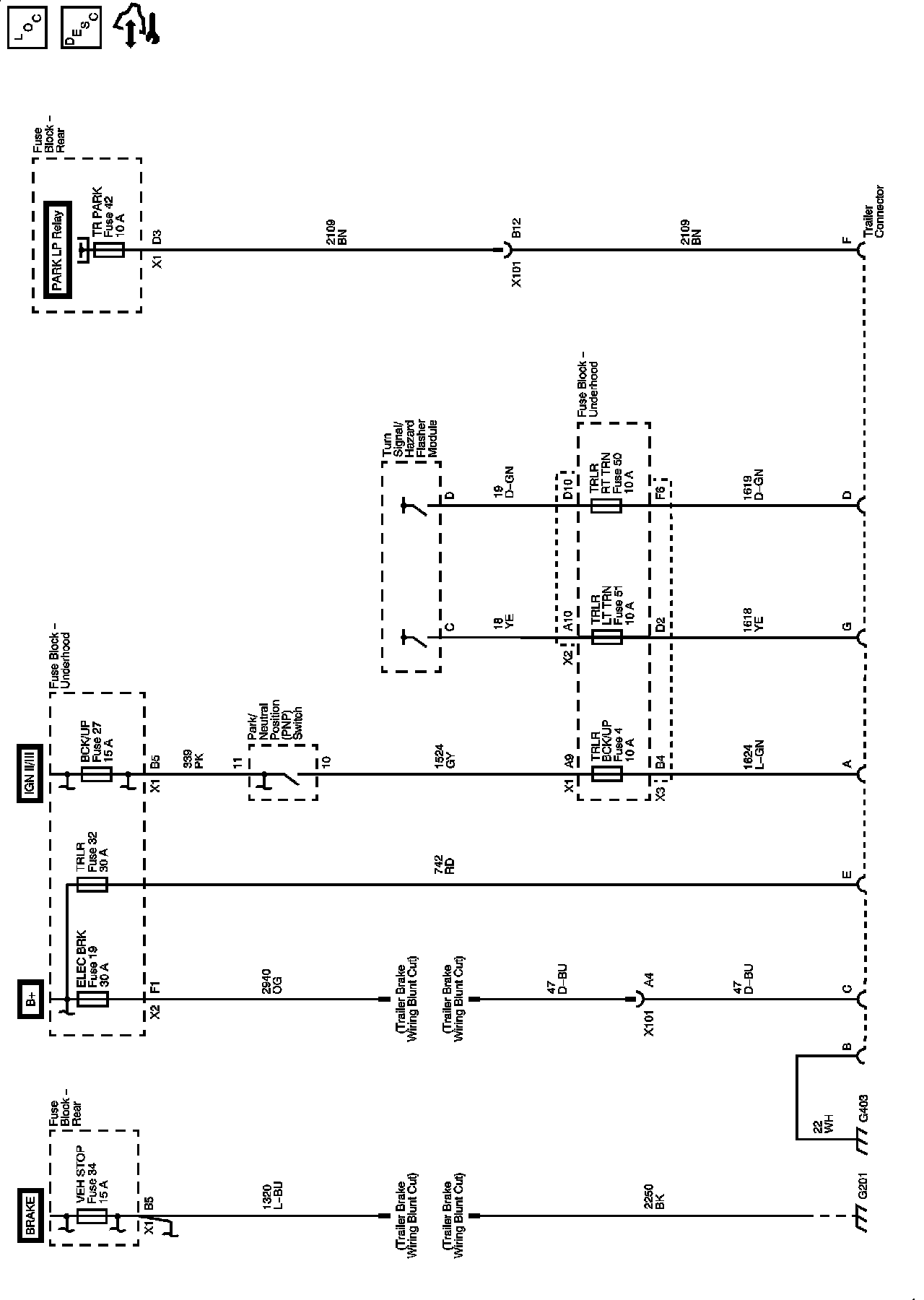

Trailer Wiring

Exterior Lights Diagram 9:
