Home >> Saab >> 2008 >> 9-7X L6-4.2L >> Repair and Diagnosis >> Lighting and Horns >> Diagrams >> Electrical Diagrams >> Interior Lights Diagram 3

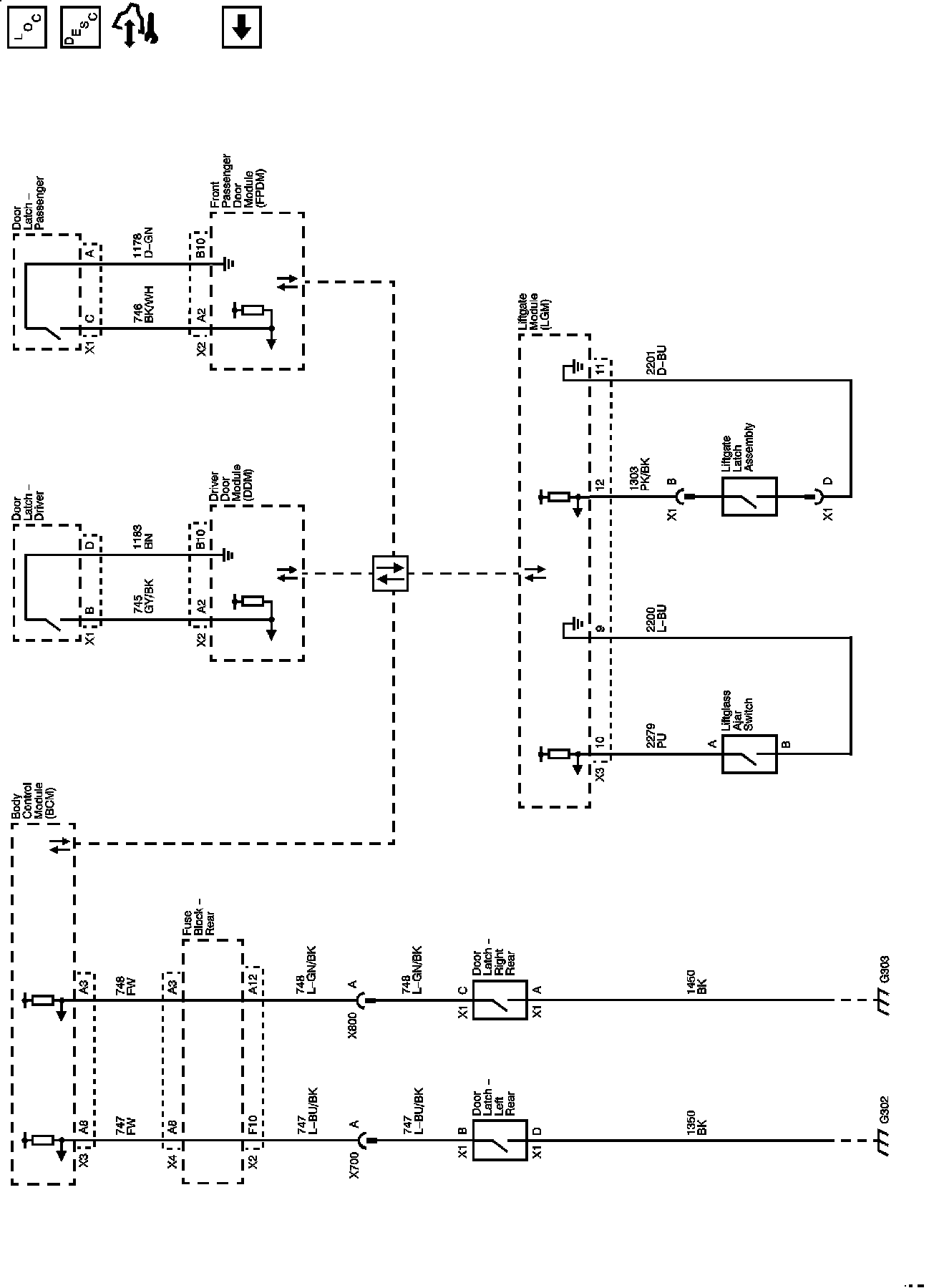

Interior Lights Diagram 3



Interior Lights Schematics

Door Switch and Liftgate Inputs

Interior Lights Diagram 3:
