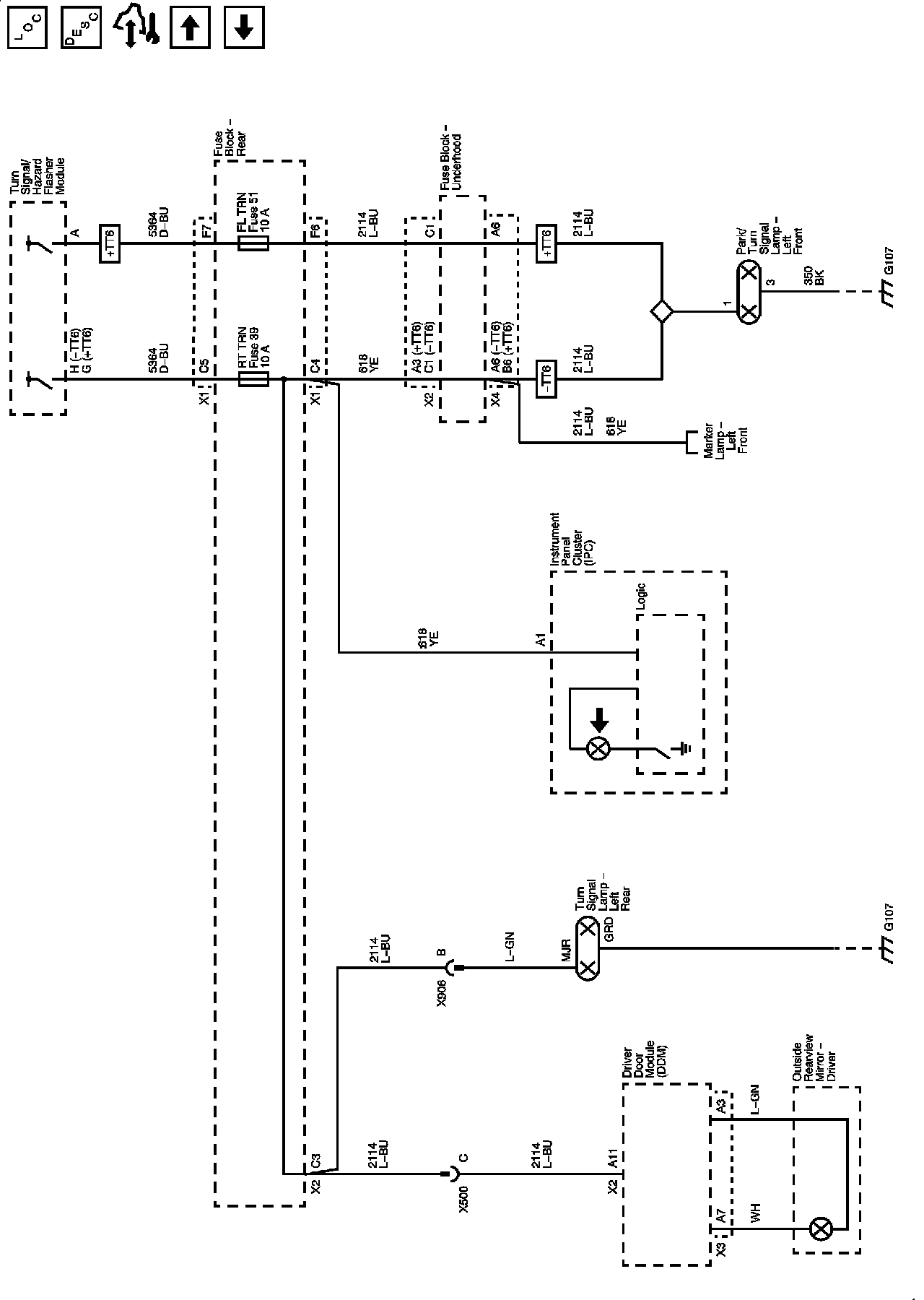

Exterior Lights Diagram 6



Exterior Lights Schematics

Left Turn Signals

Exterior Lights Diagram 6:
