Home >> Saab >> 2008 >> 9-7X L6-4.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Component Connector End Views >> Instrument Panel, Gauges and Warning Indicators

Instrument Panel, Gauges and Warning Indicators



Component Connector End Views

Console Mode Actuator - Auxiliary





I/P Dimmer Switch

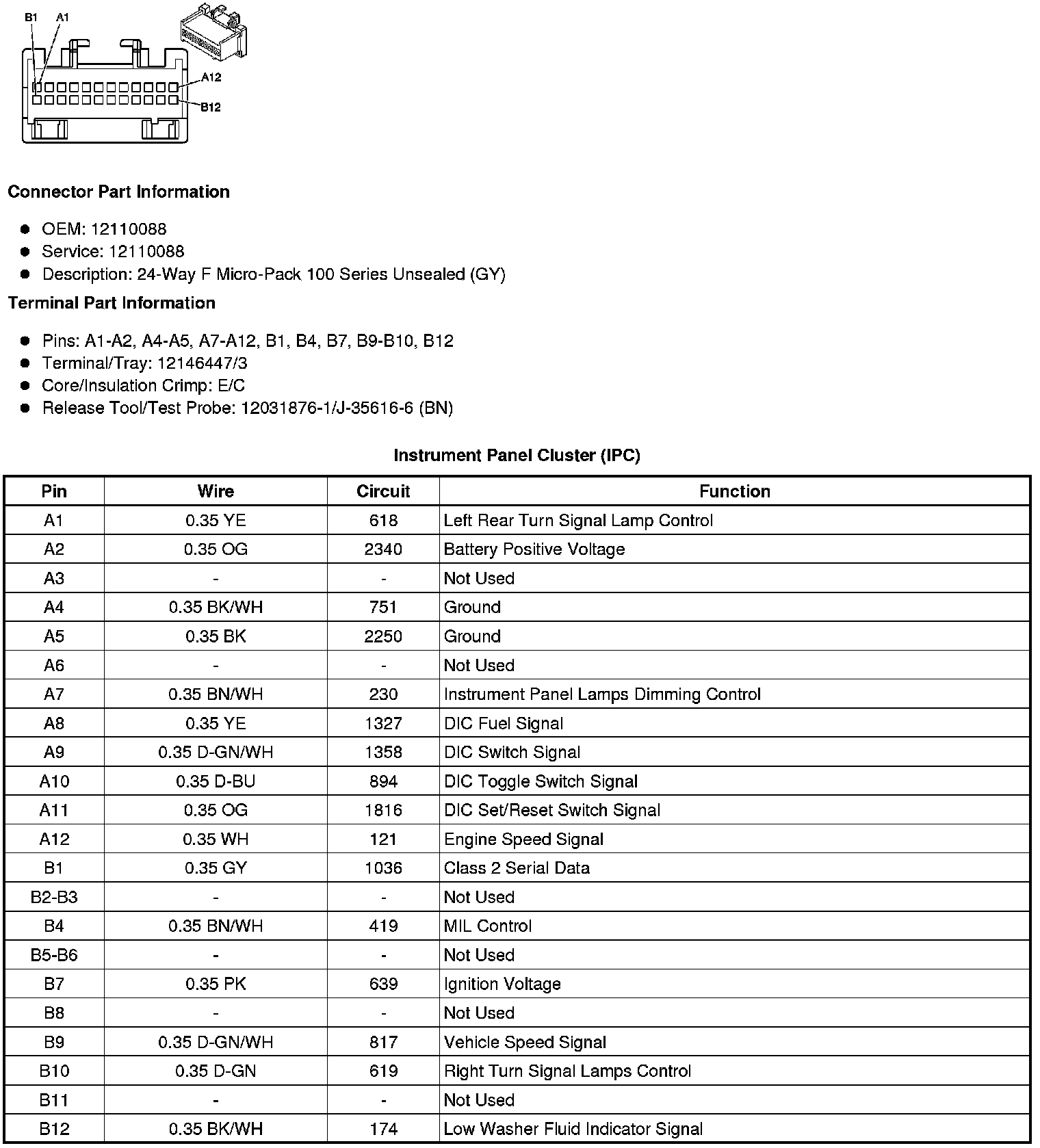

Instrument Panel Cluster (IPC)





Interior Lamp Defeat Switch
