Engine Rear Cover Removal



Engine Rear Cover Removal

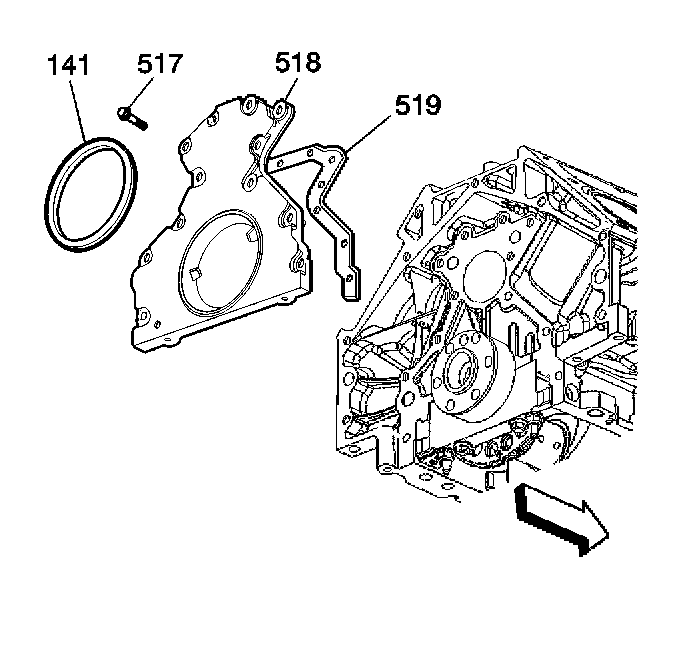

1. Remove the rear cover bolts (517).
2. Remove the rear cover (518) and gasket (519).
3. Discard the rear cover gasket.
4. Remove the rear oil seal (141).
