Engine Coolant Air Bleed Pipe and Hole Cover Removal (5.3L)

Engine Coolant Air Bleed Pipe and Hole Cover Removal (5.3L)

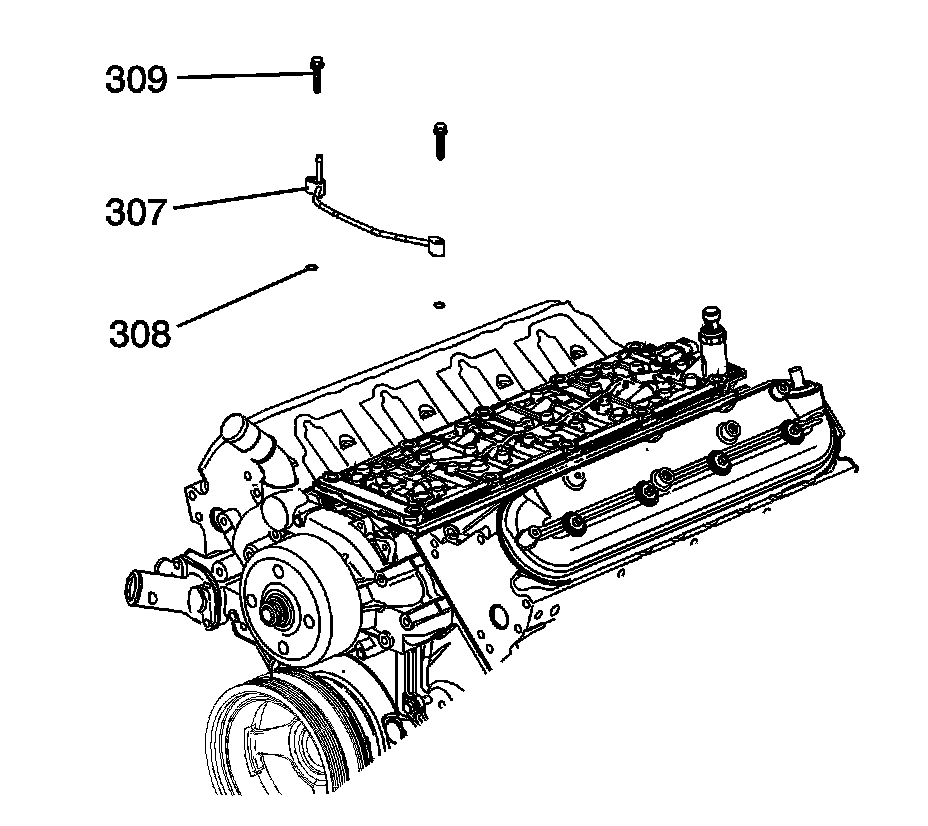

1. Remove the engine coolant air bleed pipe bolts (309).
2. Remove the pipe (307) with seals (308).

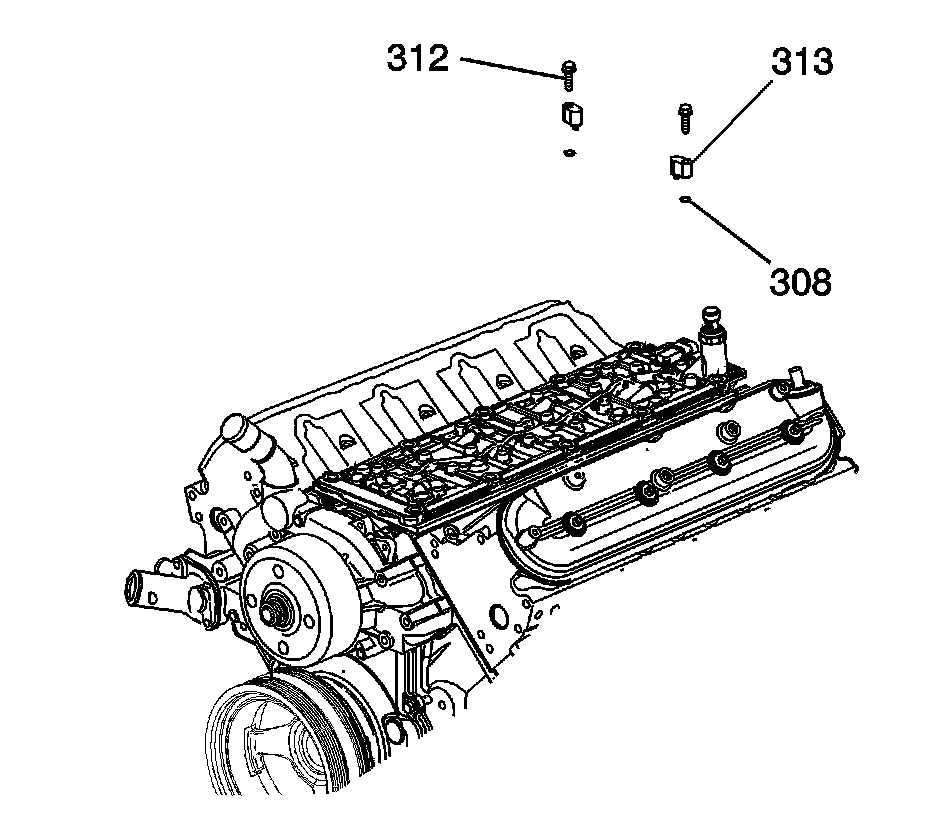

3. Remove the engine coolant air bleed cover bolts (312).
4. Remove the covers (313) with seals (308).




5. Remove the seals (308) from the pipe and covers.
6. Discard the seals.
