Engine Flywheel Cleaning and Inspection

Engine Flywheel Cleaning and Inspection




1. Clean the flex plate in solvent.
Caution: Refer to Safety Glasses Caution (Safety Glasses Caution).
2. Dry the flex plate with compressed air.

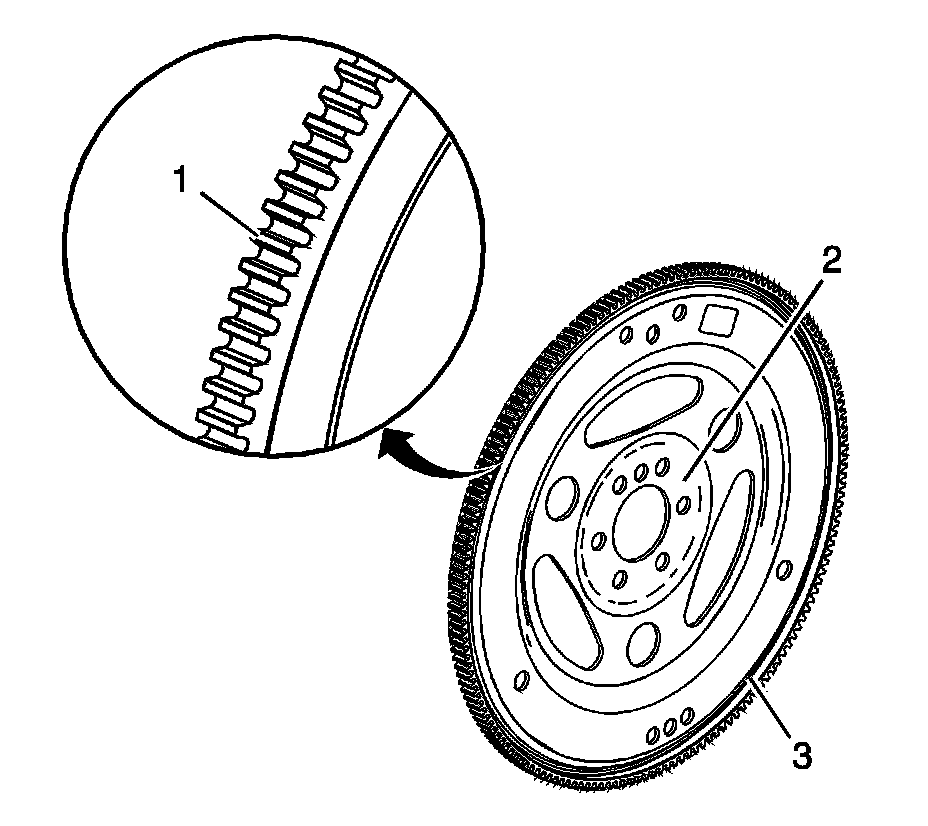

3. Inspect the flex plate for the following conditions:

* Damaged ring gear teeth (1)
* Stress cracks around the flex plate-to-crankshaft bolt hole locations (2)

Important: Do not attempt to repair the welded areas that retain the ring gear to the flex plate. Install a new flex plate.


* Welded areas (3) that retain the ring gear onto the flex plate for cracking
