Camshaft Timing Chain and Sprocket Cleaning and Inspection

Camshaft Timing Chain and Sprocket Cleaning and Inspection




1. Clean the components with cleaning solvent.
Caution: Refer to Safety Glasses Caution (Safety Glasses Caution).
2. Dry the components with compressed air.

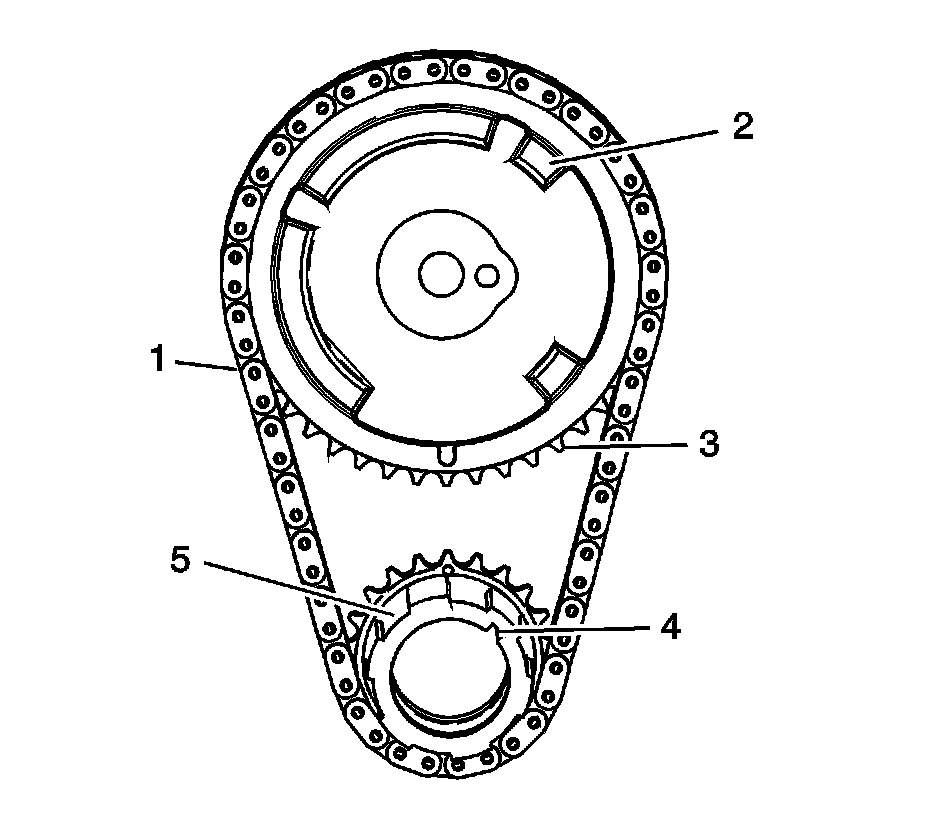

3. Inspect the timing chain (1) for binding or wear.
4. Inspect the camshaft position (CMP) sensor raised areas (2) for nicks or damage.
5. Inspect for worn, damaged, or chipped teeth (3).
6. Inspect for a damaged keyway (4).
7. Inspect for worn oil pump drive splines (5).
