Valve Lifter Oil Manifold Installation

Valve Lifter Oil Manifold Installation




1. Do not lift the manifold assembly by the electrical lead frame.





Important:
* All gasket surfaces should be free of oil or other foreign material during assembly.

* Do not allow dirt or debris to enter the manifold. Plug, as required.

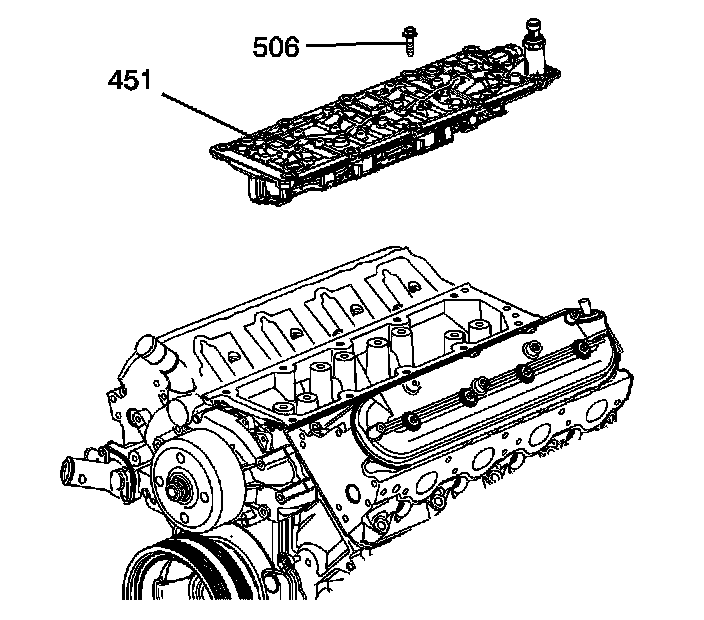

2. Install the service gasket (556) onto the manifold.




3. Install the manifold (451) with gasket.

Notice: Refer to Fastener Notice (Fastener Notice).

4. Install the manifold bolts (506).

Tighten the manifold bolts to 25 Nm (18 ft. lbs.).
