Drive Belt Tensioner Replacement - Air Conditioning

Drive Belt Tensioner Replacement - Air Conditioning

Removal Procedure




1. Remove the air conditioning (A/C) drive belt. Refer to Air Conditioning Compressor Belt Replacement (Air Conditioning Compressor Belt Replacement).
2. Raise and suitably support the vehicle. Refer to Lifting and Jacking the Vehicle (Service and Repair).

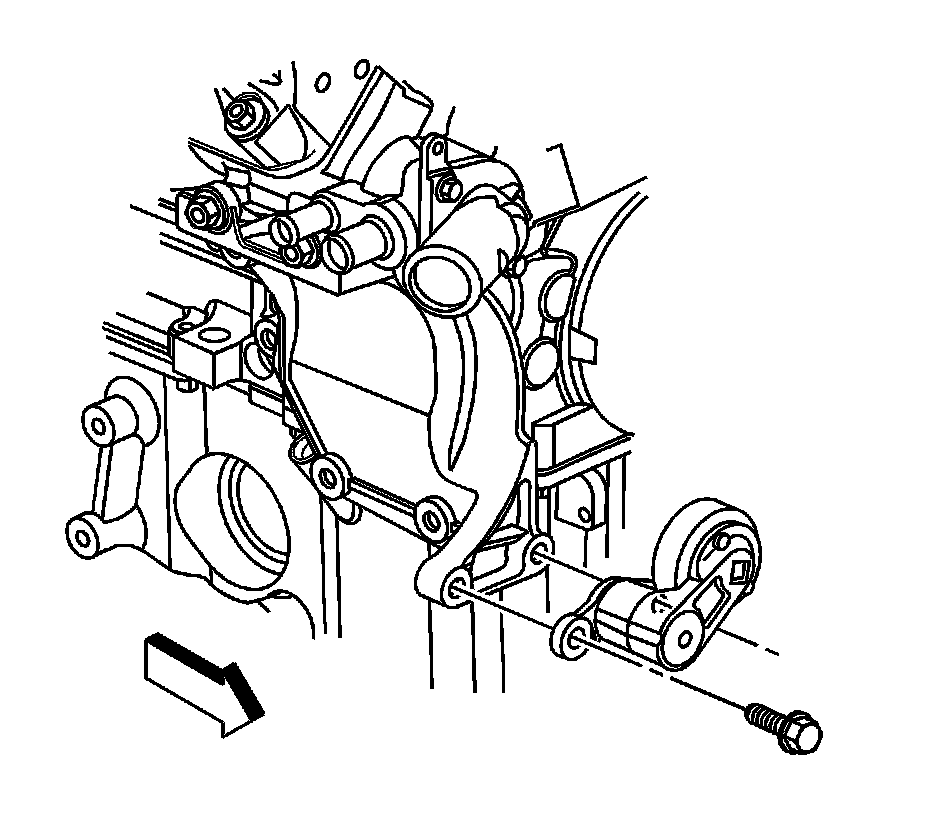

3. Remove the A/C belt tensioner bolts.
4. Remove the A/C belt tensioner.

Installation Procedure




1. Install the A/C belt tensioner.

Notice: Refer to Fastener Notice (Fastener Notice).

2. Install the A/C belt tensioner bolts.

Tighten the bolts to 50 Nm (37 ft. lbs.).

3. Lower the vehicle.
4. Install the A/C drive belt. Refer to Air Conditioning Compressor Belt Replacement (Air Conditioning Compressor Belt Replacement).
