Turbine Shaft Seal Installation



Turbine Shaft Seal Installation

Tools Required
* J 36418-1B Turbine Shaft Seal Installer
* J 36418-2A Turbine Shaft Seal Sizer

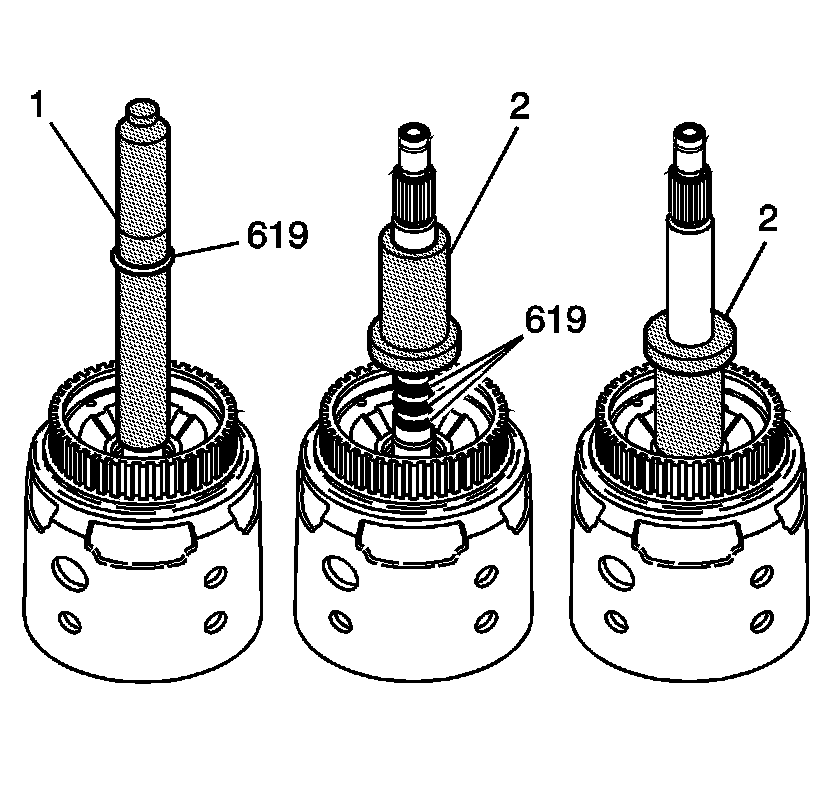

1. Use the J 36418-1B (1) in order to install the four turbine shaft oil seal rings (619).
2. Resize oil seal rings (619) after installation:

1. Place J 36418-2A (2) over the turbine shaft oil seal rings (619) and seat against input housing.
2. Remove J 36418-2A (2).
3. Turn J 36418-2A (2) upside down and place over the turbine shaft oil seal ring (619).
4. Seat against input housing.
5. Leave J 36418-2A (2) in place over the turbine shaft oil seal rings (619) until the reverse input clutch housing is installed.
