Oil Pump Cover and Body Assemble

Oil Pump Cover and Body Assemble

Tools Required

J 21368 Pump Body and Cover Alignment Band

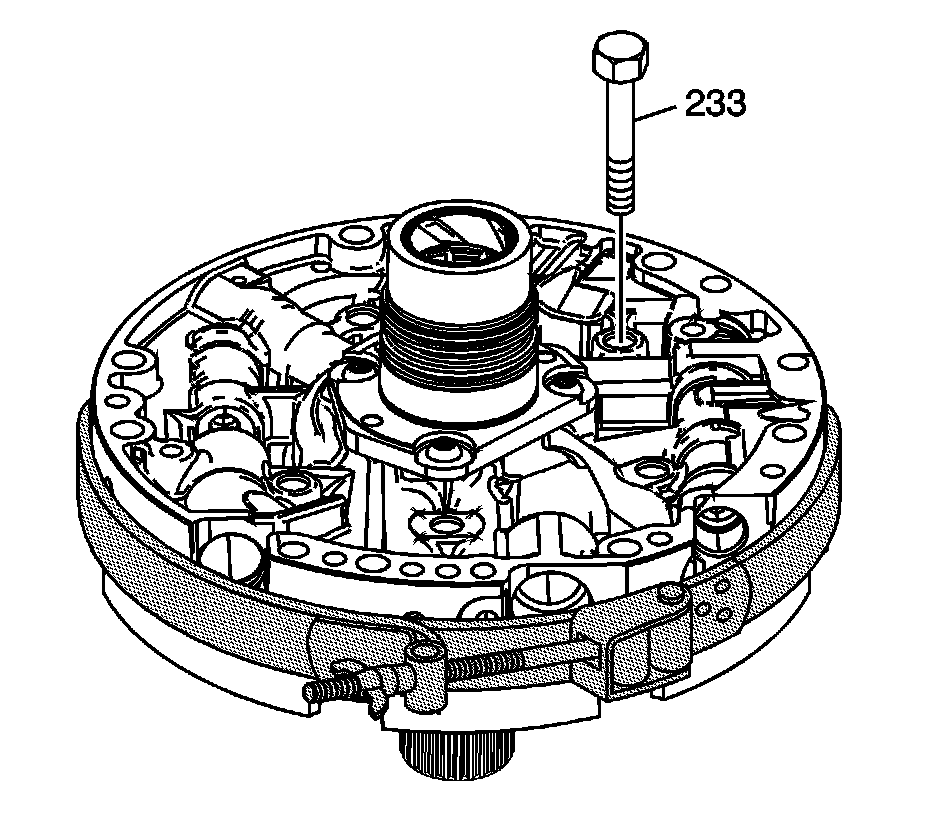

1. Place the oil pump cover onto the oil pump body and put stator shaft through a hole in the bench.
2. Install the pump cover bolts (233) finger tight only.




3. Install the J 21368.

Notice: Refer to Fastener Notice.

4. Tighten the pump cover bolts (233).

Tighten the bolts to 24 Nm (18 ft. lbs.).

5. Remove the J 21368.
