Oil Pump Body Bushing Replacement

Oil Pump Body Bushing Replacement

Tools Required
* J 41778-1 Pump Body Bushing Installer/Remover
* J 41778-2 Pump Body Bushing Position Stop




1. Inspect the oil pump body for the following:

* Worn or damaged bushings
* Foreign material or debris
* Porosity
* Scored or irregular mating faces
* Cross channel leaks

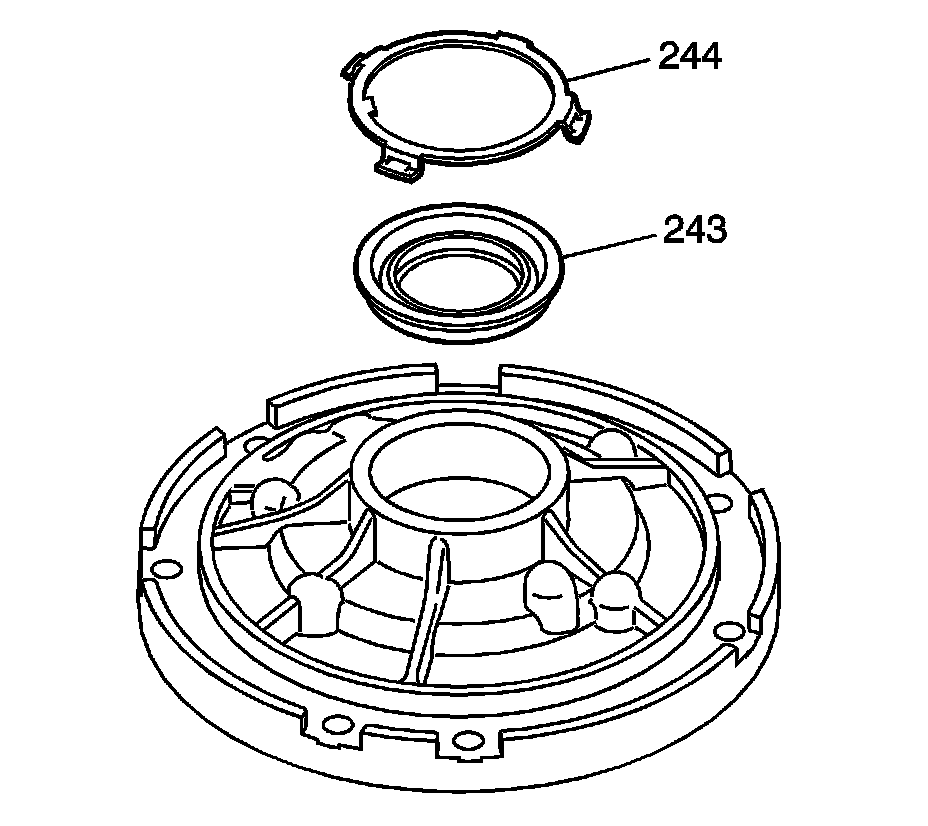

2. Remove the front fluid seal retainer (244).
3. Remove the oil seal assembly (243).

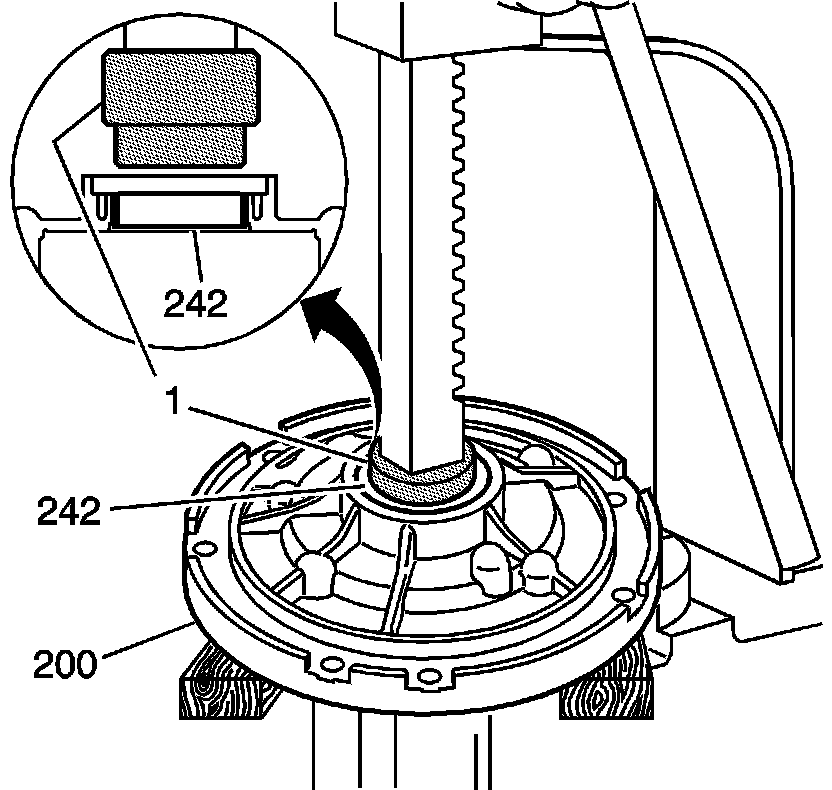

4. Using the J 41778-1 (1) with an arbor press, remove the pump body bushing (242).




5. Using J 41778-1 (1) with an arbor press, install a new pump body bushing (242).




6. Use the J 41778-2 (1) to ensure proper bushing depth.
