Case Bushing



Case Bushing

Tools Required
* J 8092 Driver Handle
* J 34196-B Transmission Bushing Service Set

Removal Procedure

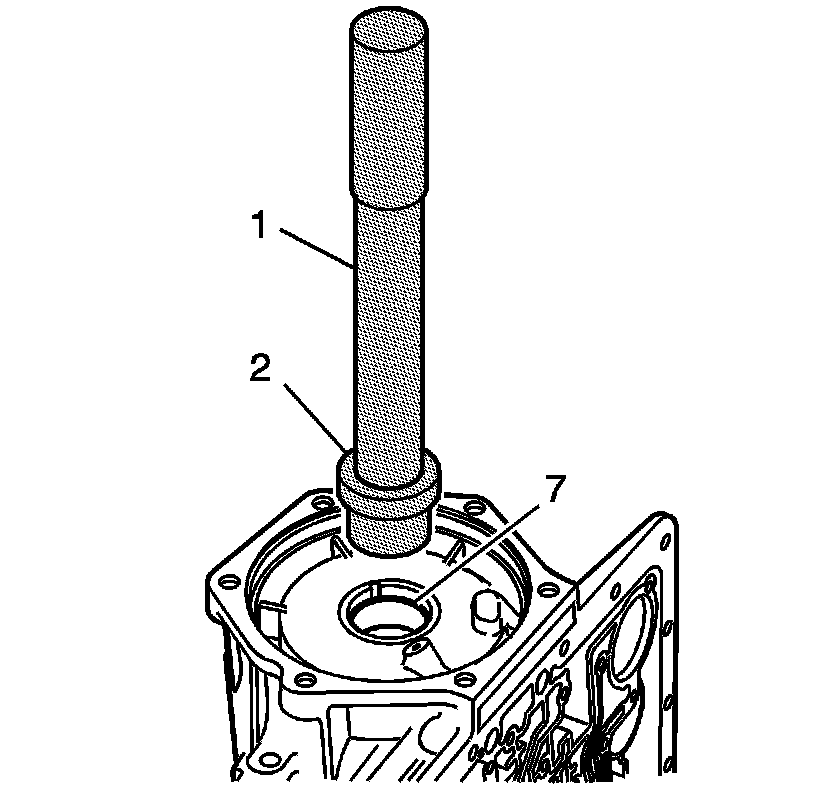

Remove the case bushing (7) using J 8092 (1) and J 34196-10 (2) which is part of kit J 34196-B.

Installation Procedure





Install a case bushing (7) using J 8092 (1) and J 34196-10 (2) which is part of kit J 34196-B.
