3-4 Accumulator Installation

3-4 Accumulator Installation




1. Inspect the 3-4 accumulator piston (44) for the following conditions:

* Porosity
* Cracks
* Scoring
* Nicks and scratches

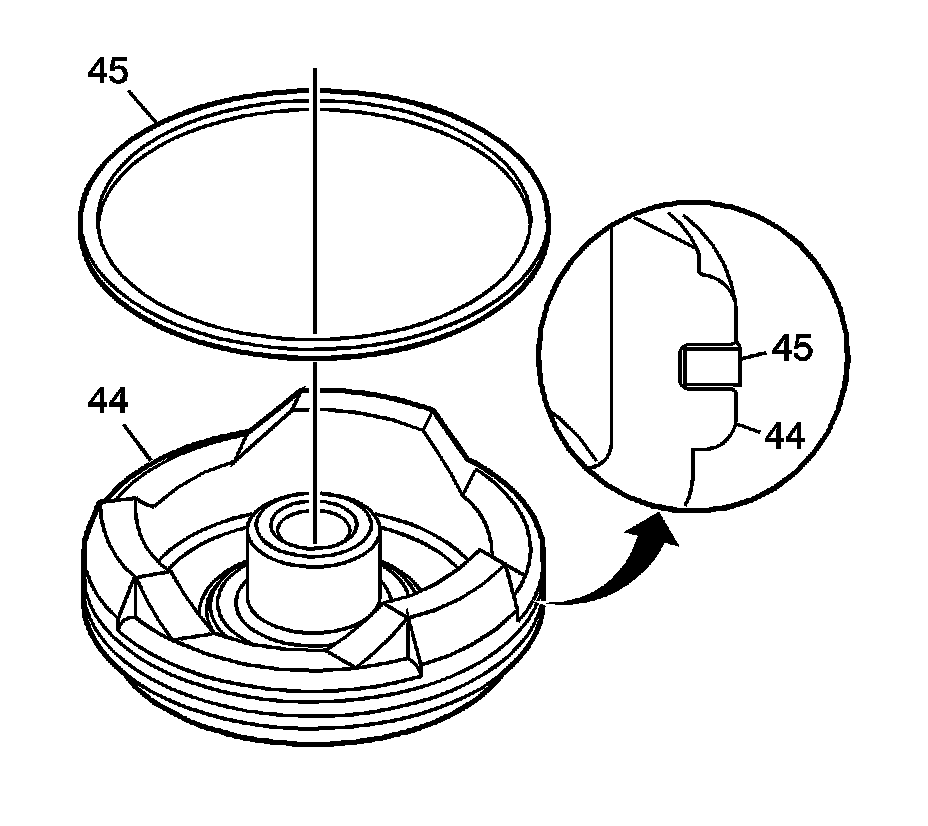

2. Install the 3-4 accumulator piston oil seal ring (45) on the 3-4 accumulator piston (44).

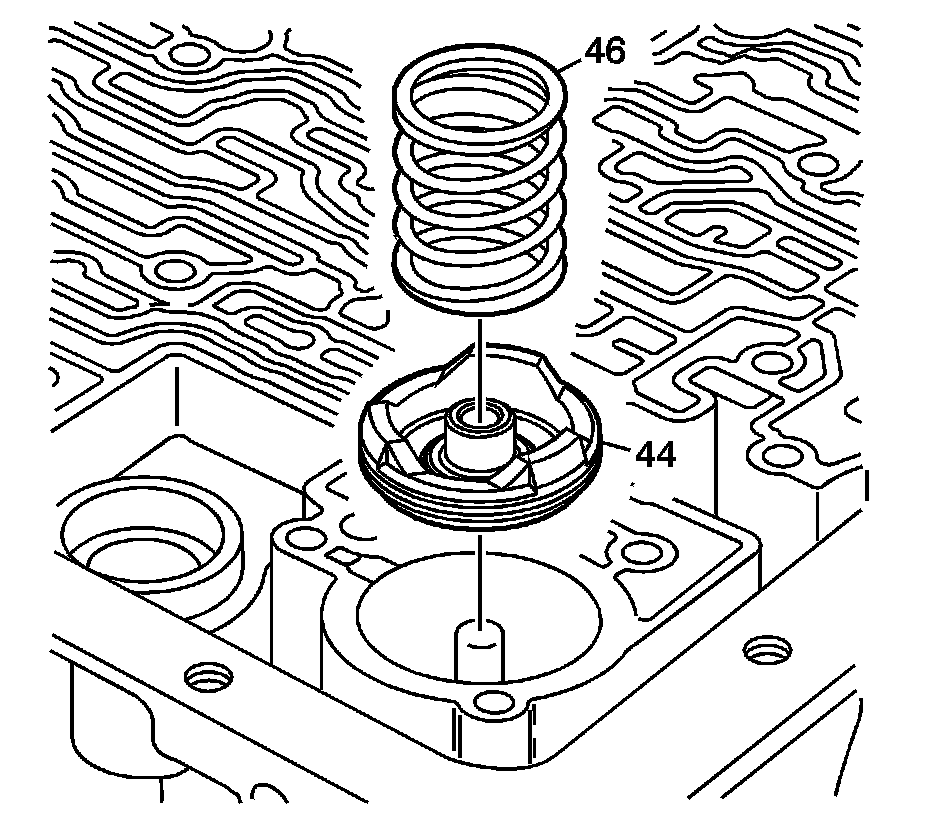

3. Install the 3-4 accumulator piston (44) and seal assembly into the bore.
4. Inspect the 3-4 accumulator spring (46) for cracks.

Important: Some models do not use a 3-4 accumulator spring.


5. Install the 3-4 accumulator spring.
