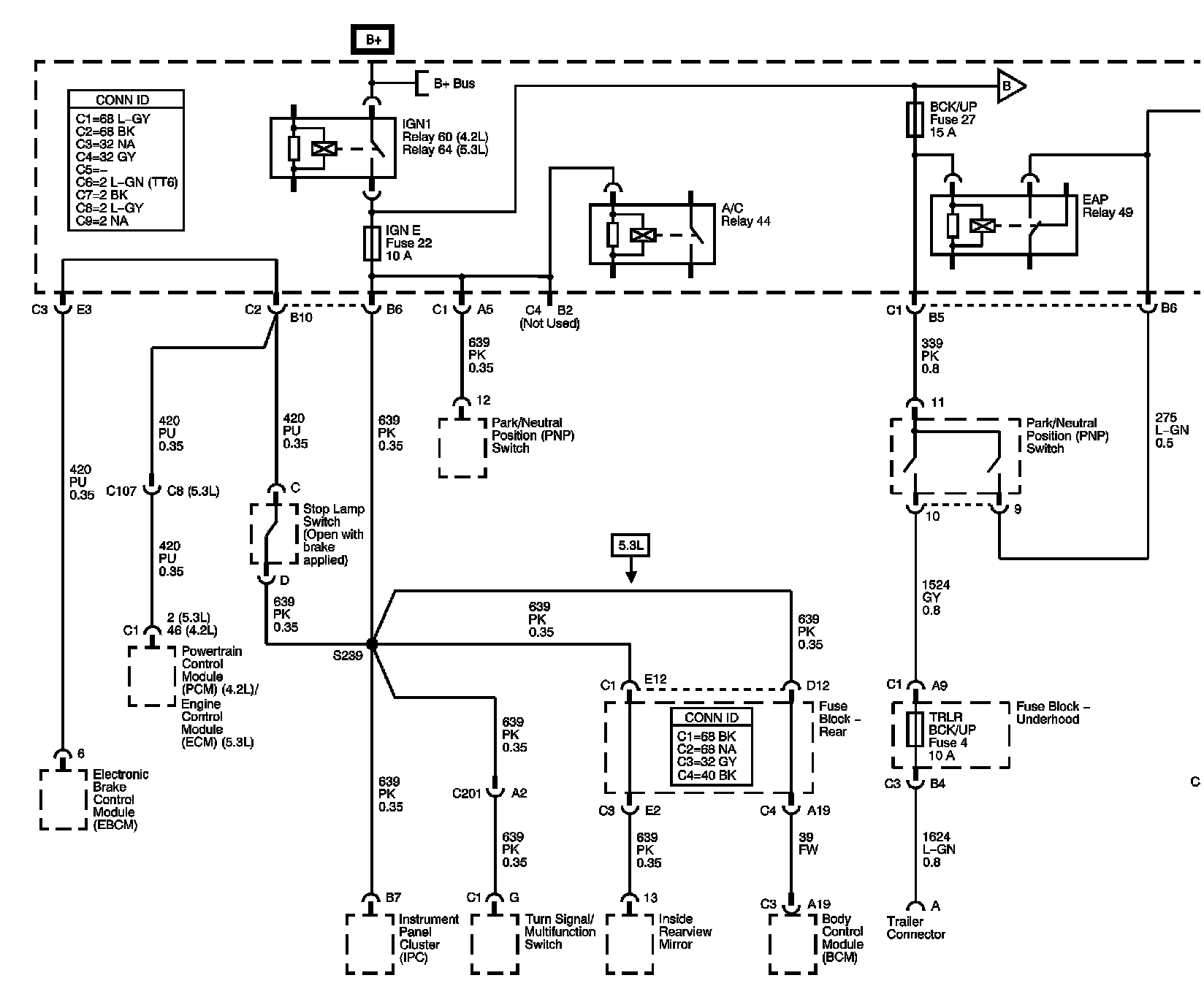

Power Distribution Diagram 13



Power Distribution Schematics

BCK/UP, BTSI, IGN E, and TRLR BCK/UP Fuses

Y�5:






Next Diagram: Power Distribution Diagram 14

Previous Diagram: Power Distribution Diagram 12

Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
