Right Front Door Harness Routing



Harness Routing Views

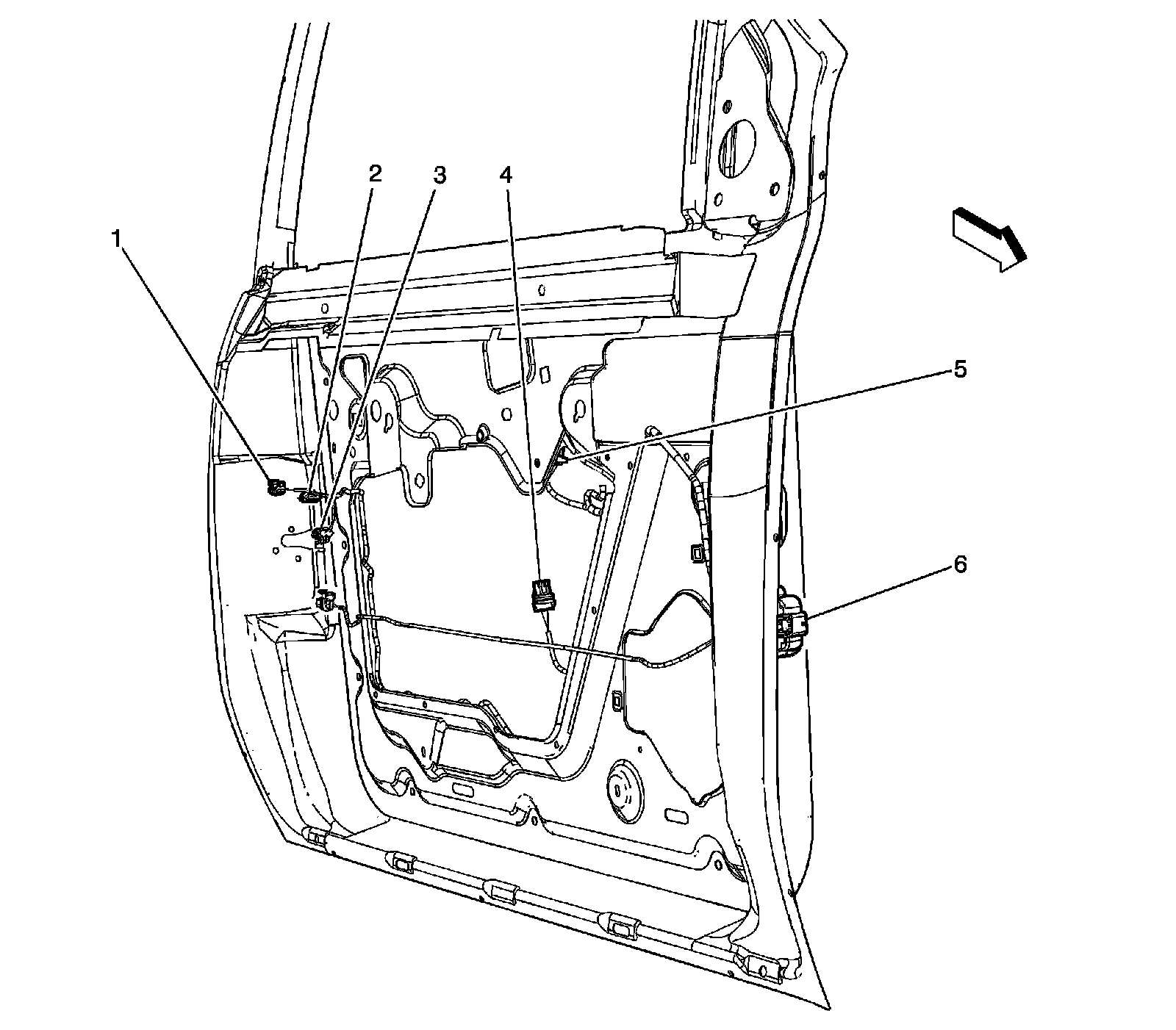

Right Front Door Harness Routing




1 - Door Latch Assembly - Passenger C1
2 - Door Latch Assembly - Passenger C2
3 - Inflatable Restraint Side Impact Sensor (SIS) - Right
4 - Window Motor - Front Passenger
5 - Front Passenger Door Module (FPDM) C1
6 - C600
