Left Rear Door Harness Routing
Harness Routing Views

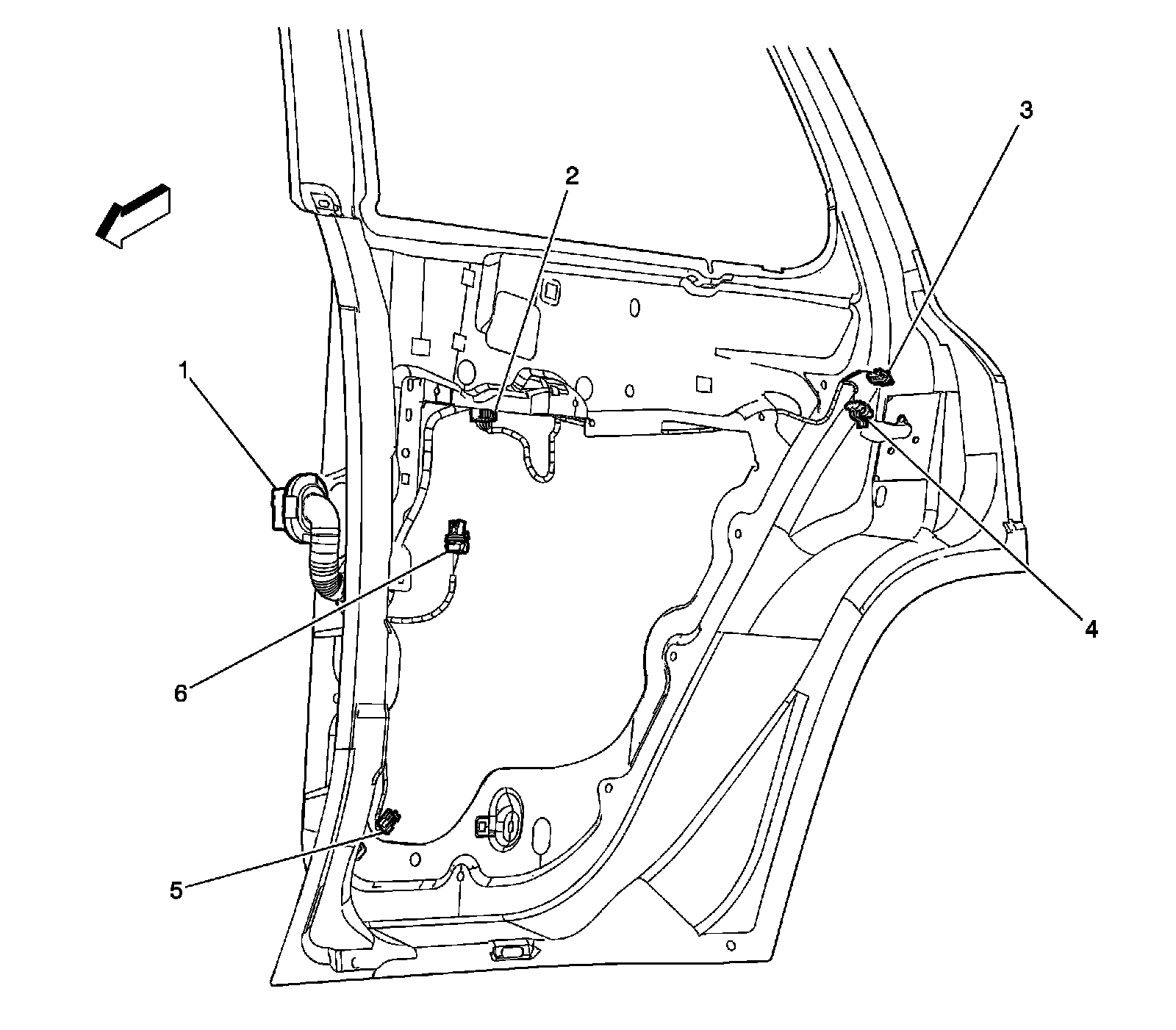

Left Rear Door Harness Routing
1 - C700
2 - Window Switch - LR
3 - Door Latch Assembly - LR C1
4 - Door Latch Assembly - LR C2
5 - Speaker - LR Door
6 - Window Motor - LR
Harness Routing Views
Left Rear Door Harness Routing
1 - C700
2 - Window Switch - LR
3 - Door Latch Assembly - LR C1
4 - Door Latch Assembly - LR C2
5 - Speaker - LR Door
6 - Window Motor - LR
