Valve Rocker Arm and Valve Lash Adjuster Removal



Valve Rocker Arm and Valve Lash Adjuster Removal





Important: Once removed, place the valve rocker arms and valve lash adjusters in an organized order so the components can be installed into the original locations.

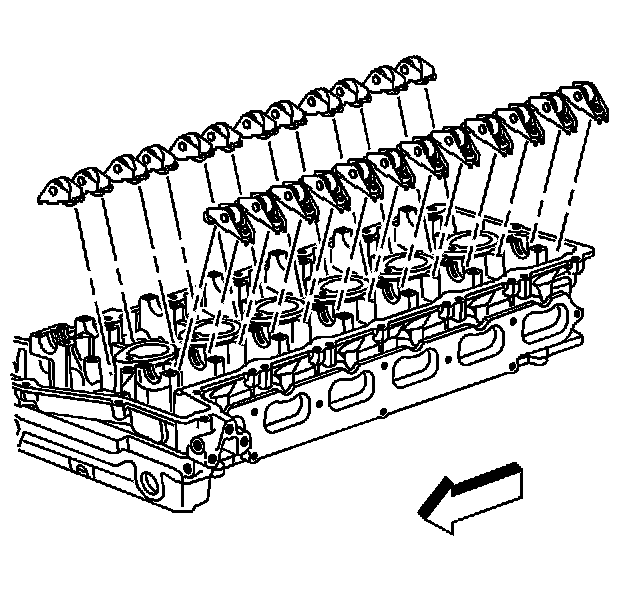

1. Remove the valve rocker arms.

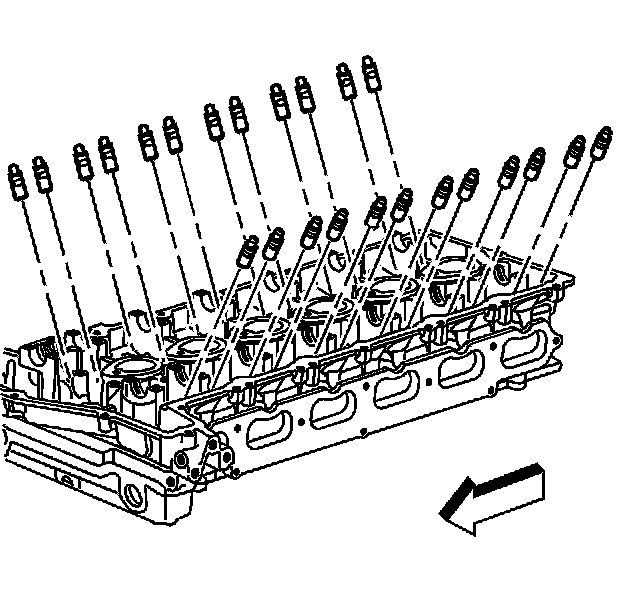

2. Remove the valve lash adjusters.
