Timing Chain Tensioner Removal

Timing Chain Tensioner Removal

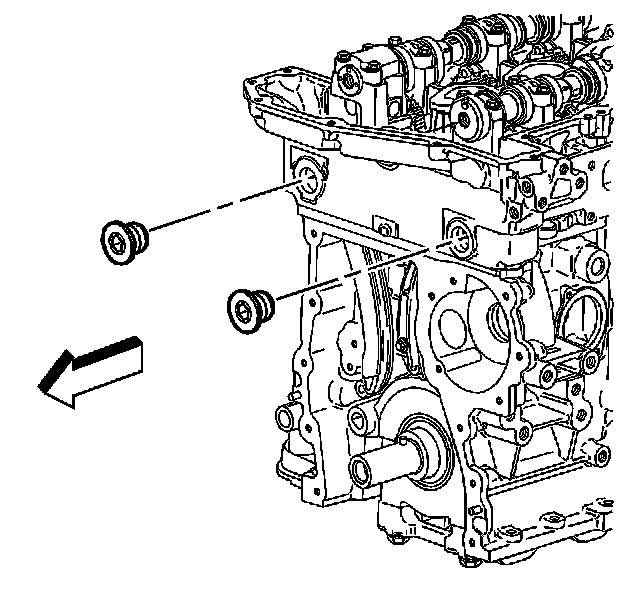

1. Remove the cylinder head access hole plugs.




2. Remove the timing chain tensioner shoe bolt.
3. Remove the timing chain tensioner shoe.




4. Remove the timing chain tensioner guide bolts.
5. Remove the timing chain tensioner guide.




6. Remove the timing chain tensioner bolts.
7. Remove the timing chain tensioner.
