Fuel Rail and Injectors Installation



Fuel Rail and Injectors Installation




1. Lubricate the lower injector O-rings with mineral oil GM P/N 9981704.

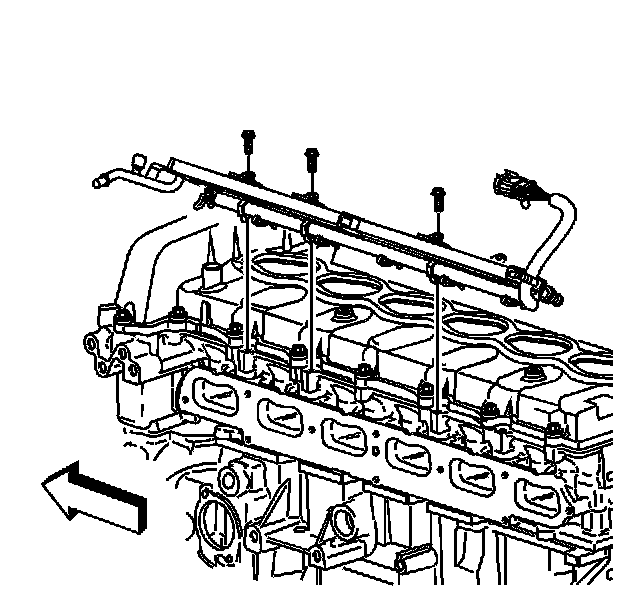

2. Install the fuel injector rail.

Notice: Refer to Fastener Notice.

3. Install the fuel injector rail bolts.

Tighten the fuel injector rail bolts to 10 Nm (89 in. lbs.).
