Engine Flywheel Installation

Engine Flywheel Installation

Special Tools

J 45059 Angle Meter

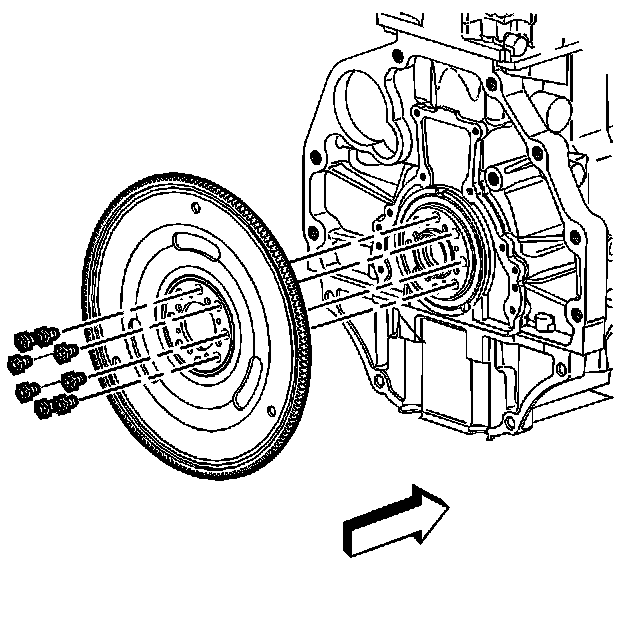

1. Install the flywheel.

Notice: Refer to Fastener Notice.

2. Install new flywheel bolts.

1. Tighten the new flywheel bolts to 25 Nm (18 ft. lbs.).
2. Use J 45059 to tighten the flywheel bolts an additional 50 degrees.
