Drive Belt Idler Pulley Installation

Drive Belt Idler Pulley Installation

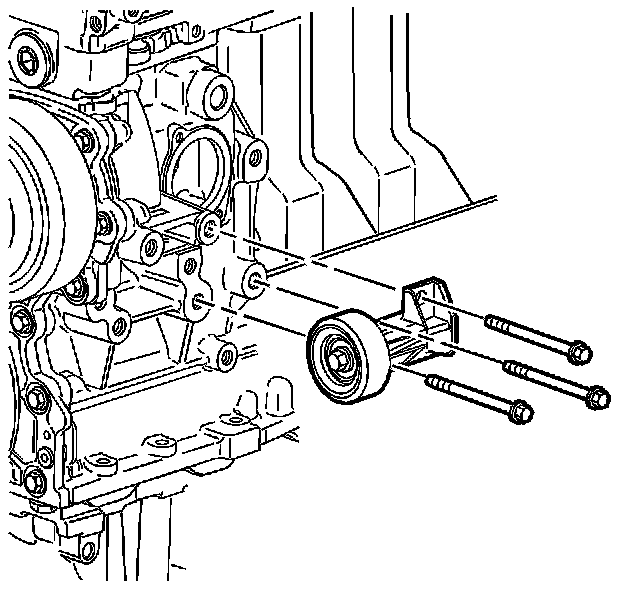

1. Install the drive belt idler pulley.

Notice: Refer to Fastener Notice.

2. Install the drive belt idler pulley bolts.

Tighten the drive belt idler pulley bolts to 50 Nm (37 ft. lbs.).
