Electrical Diagrams

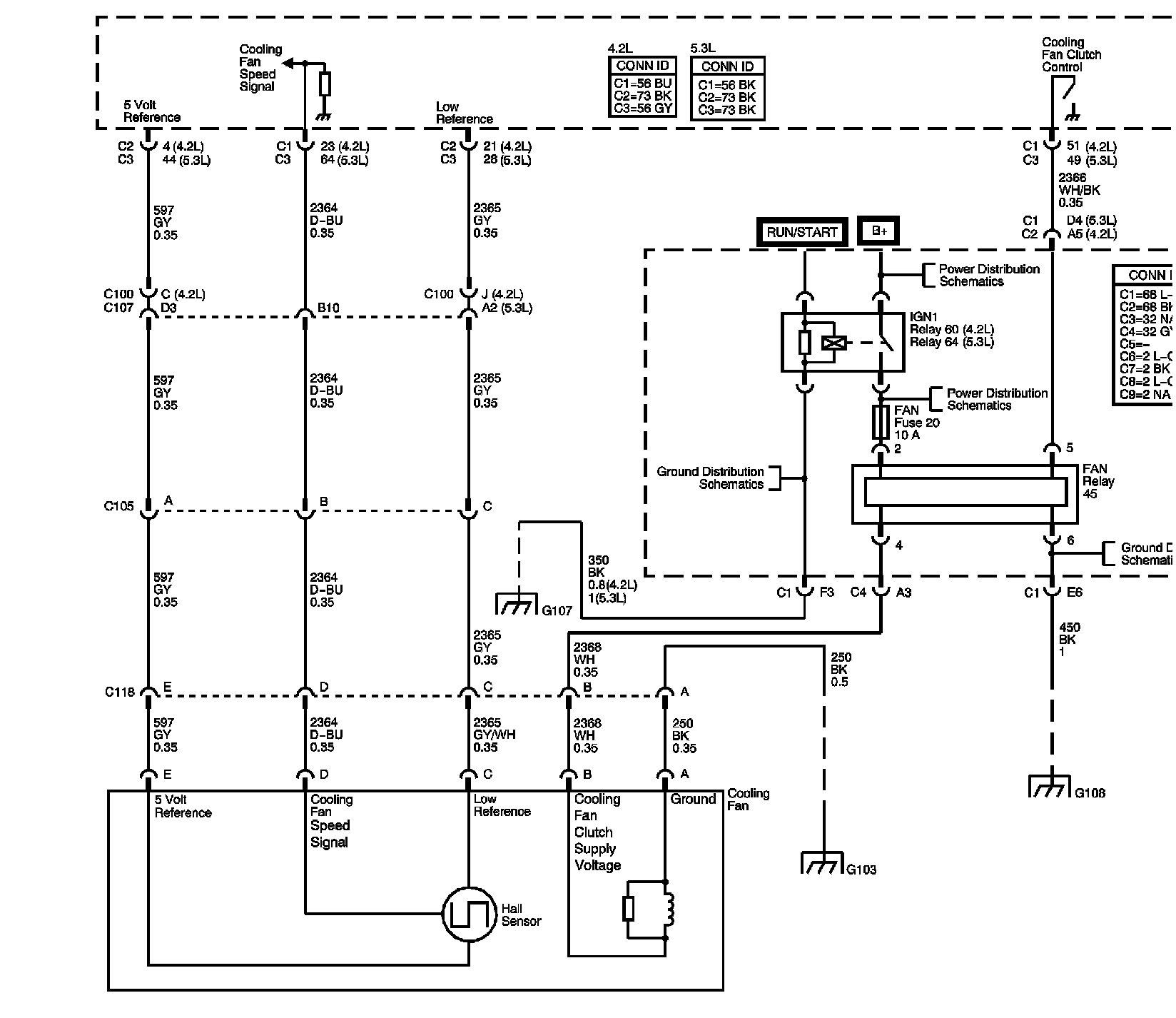

Engine Cooling Diagrams

�gG":





Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
