Right Rear Door Harness Routing
Harness Routing Views

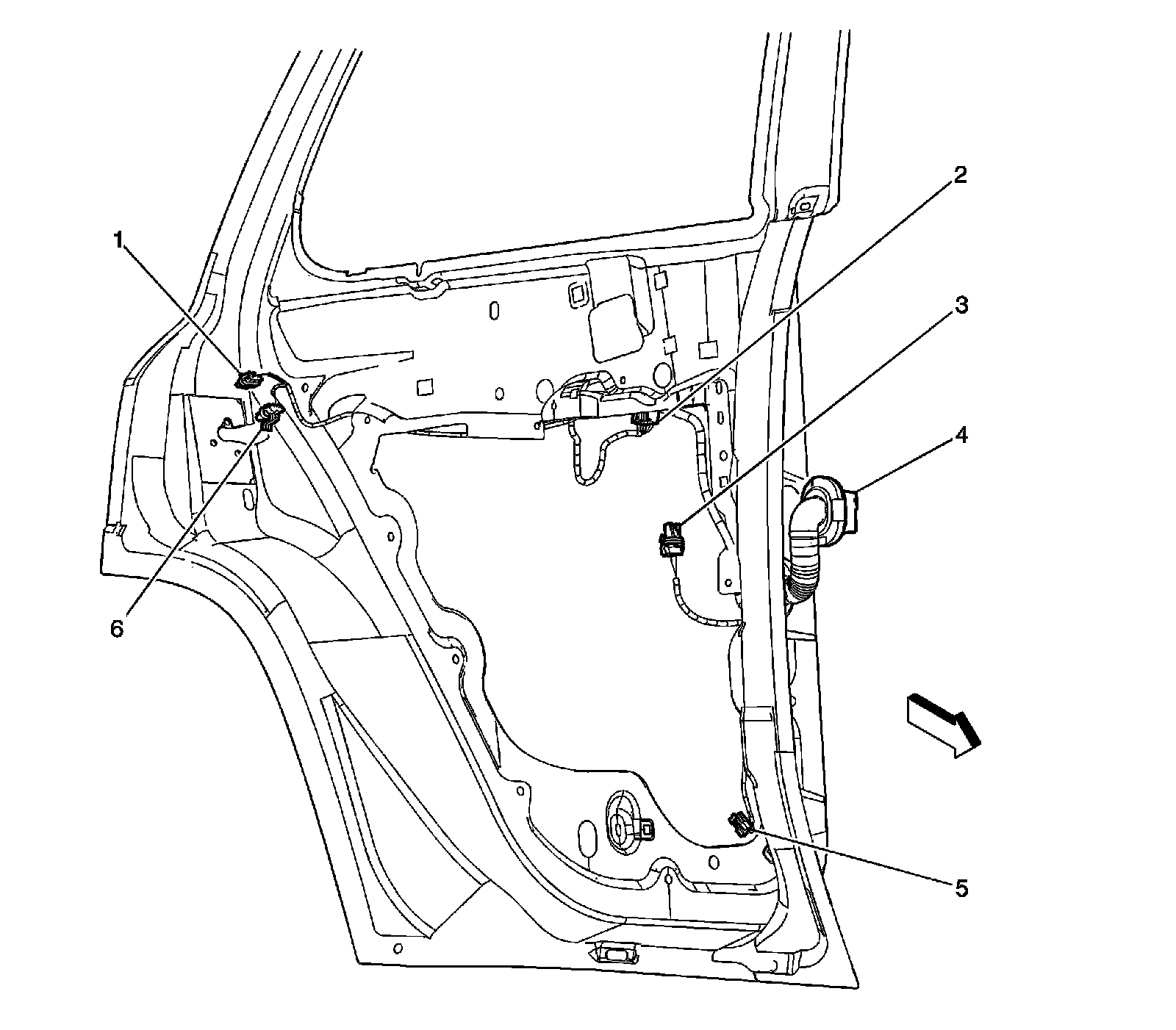

Right Rear Door Harness Routing
1 - Door Latch Assembly - RR C1
2 - Window Switch - RR
3 - Window Motor - RR
4 - C800
5 - Speaker - RR Door
6 - Door Latch Assembly - RR C2
