System Diagram

Wiper/Washer Schematics

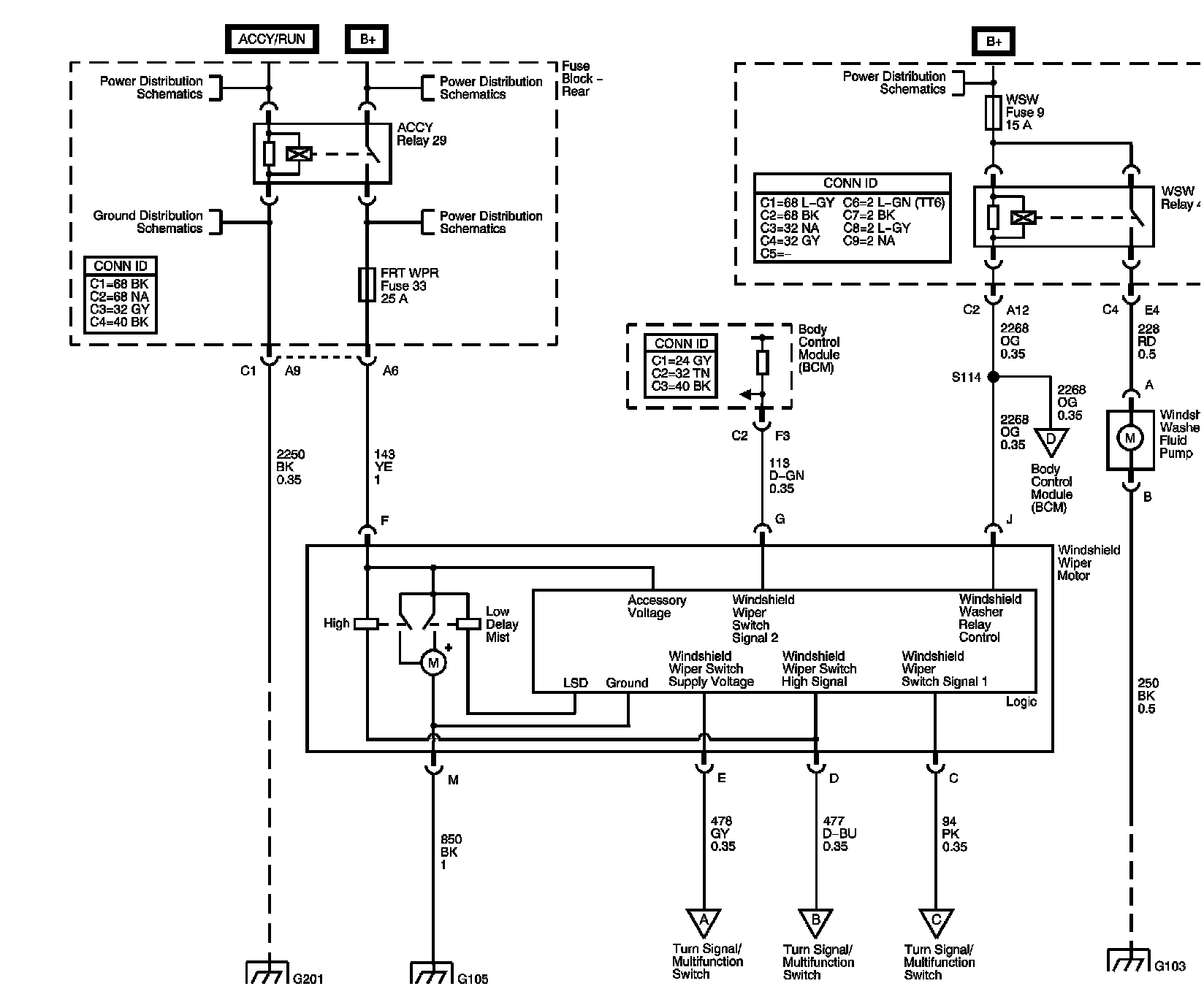

Windshield Wiper/Washer Motors

O��_:

Wiper/Washer Switch and Washer Fluid Level Switch

���_:

Headlamp Washer - CE4

���_:

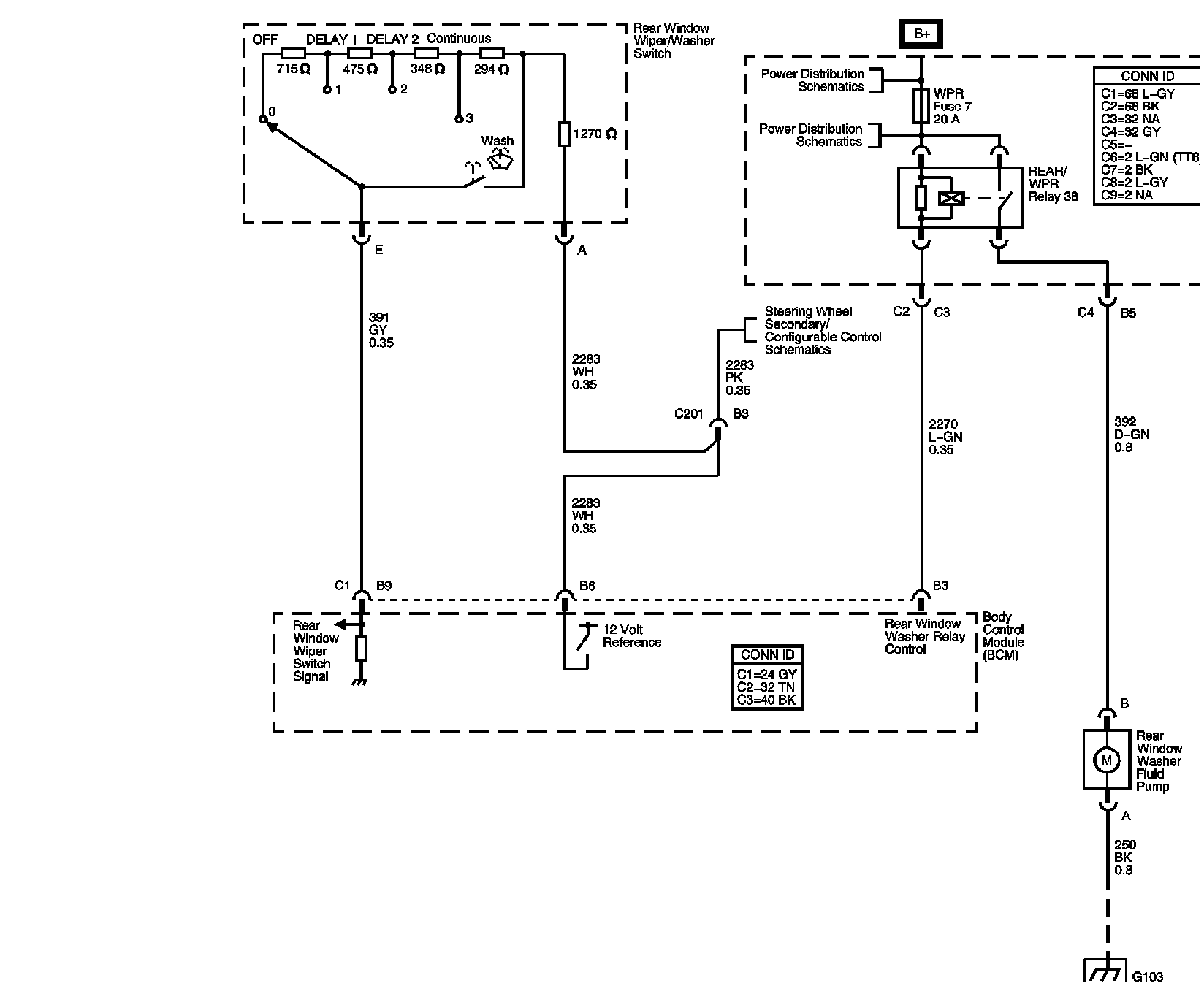

Rear Wiper/Washer Controls

���_:

Rear Window Wiper Motor

g��_:

Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
