Interior Lights Dimming Diagram 1



Interior Lights Dimming Schematics

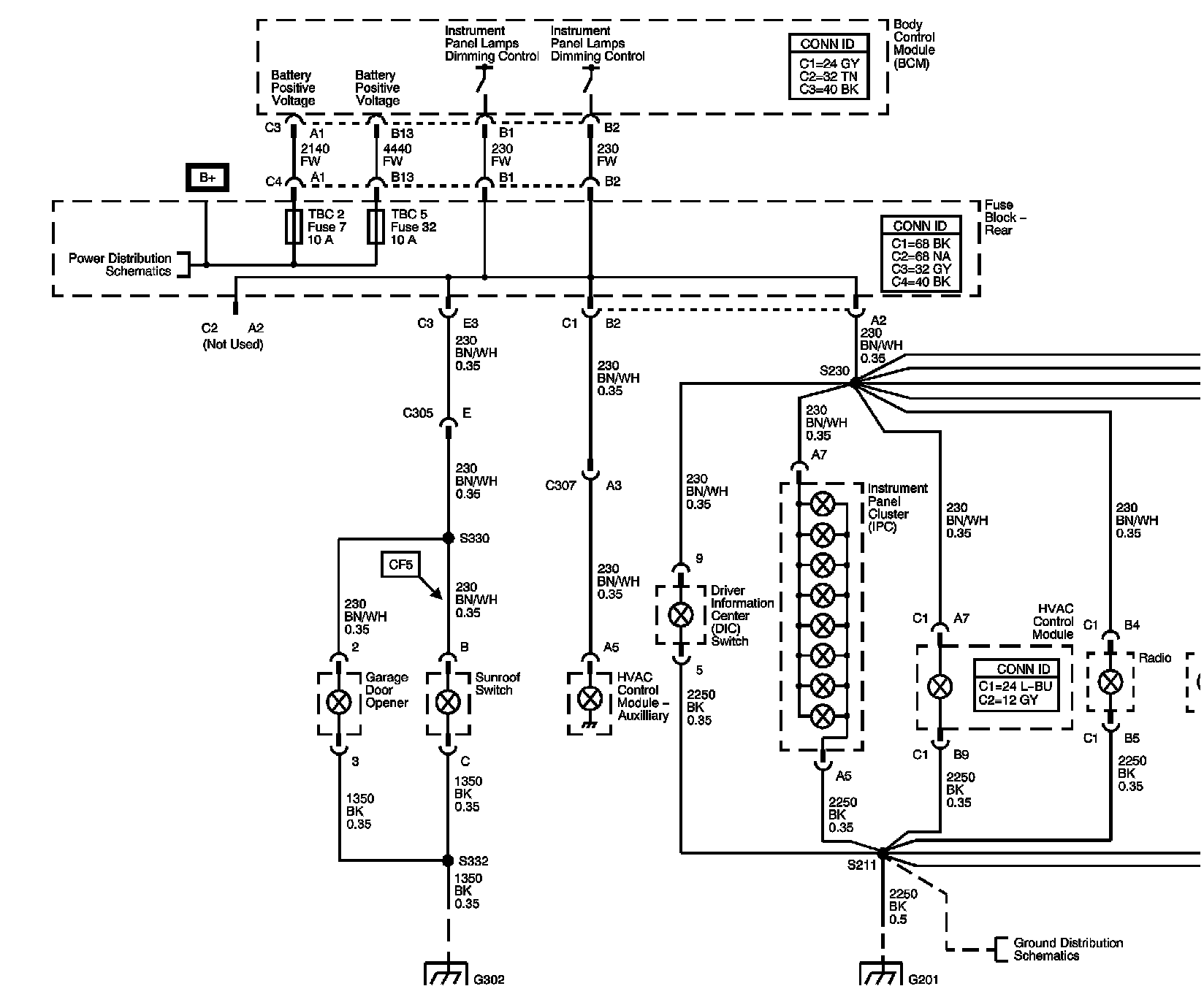

I/P Dimming Supply - 1 of 2

"�]:







Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
