Exterior Lights Diagram 7

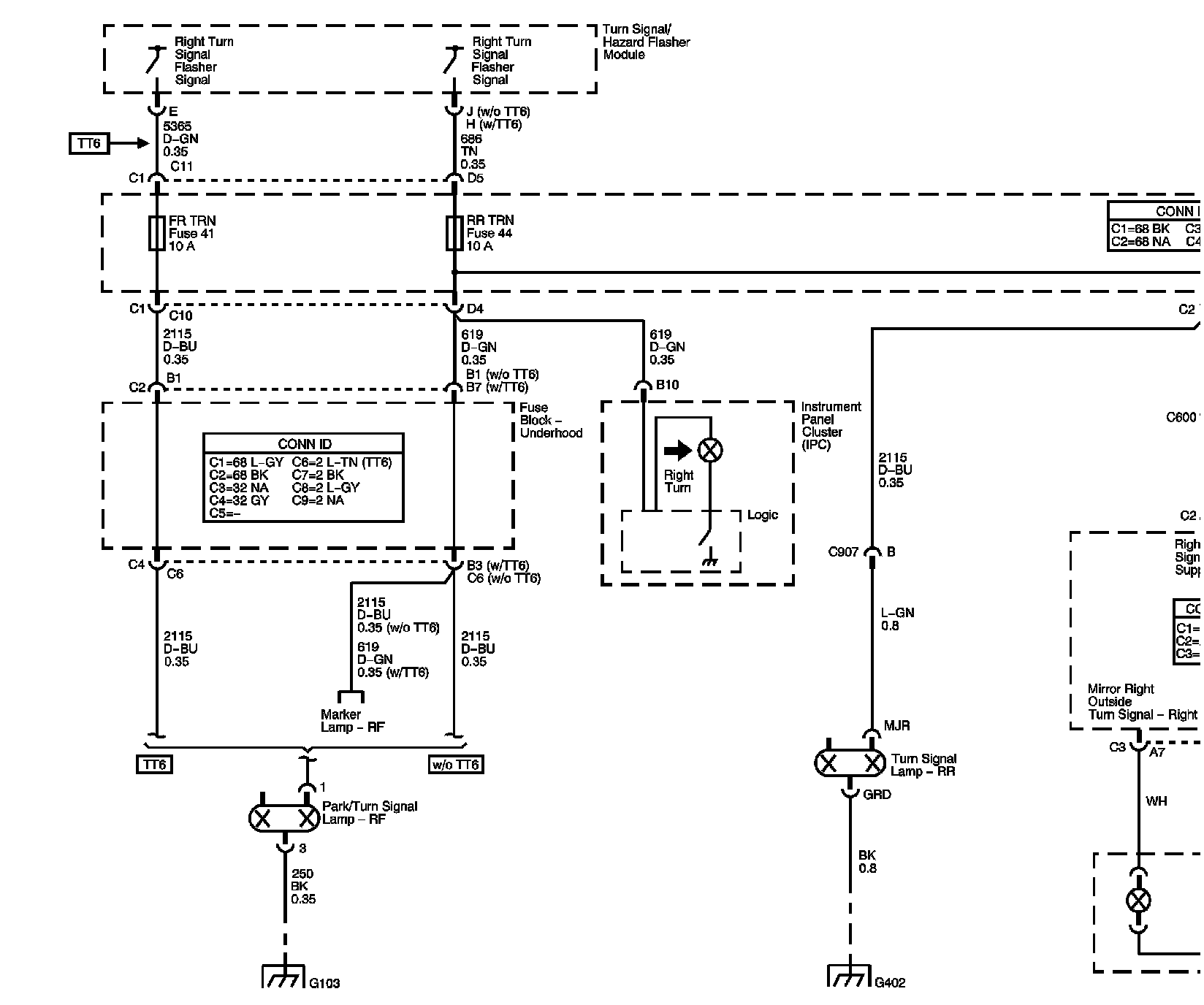

Exterior Lights Schematics

Right Turn Signals

���]:






Next Diagram: Exterior Lights Diagram 8

Previous Diagram: Exterior Lights Diagram 6

Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
