Exterior Lights Diagram 6

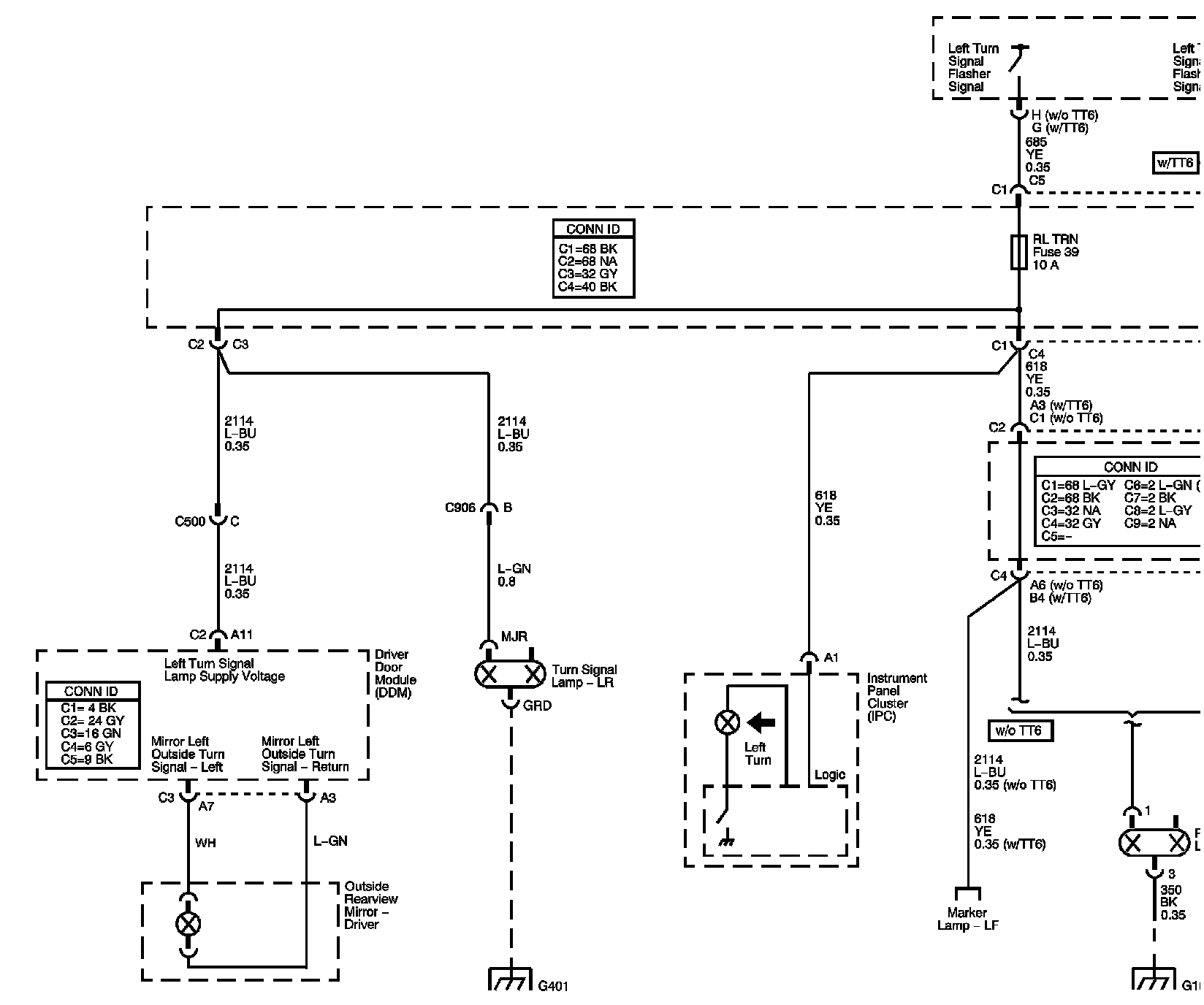

Exterior Lights Schematics

Left Turn Signals

�'�]:






Next Diagram: Exterior Lights Diagram 7

Previous Diagram: Exterior Lights Diagram 5

Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
