C101



Inline Harness Connector End Views

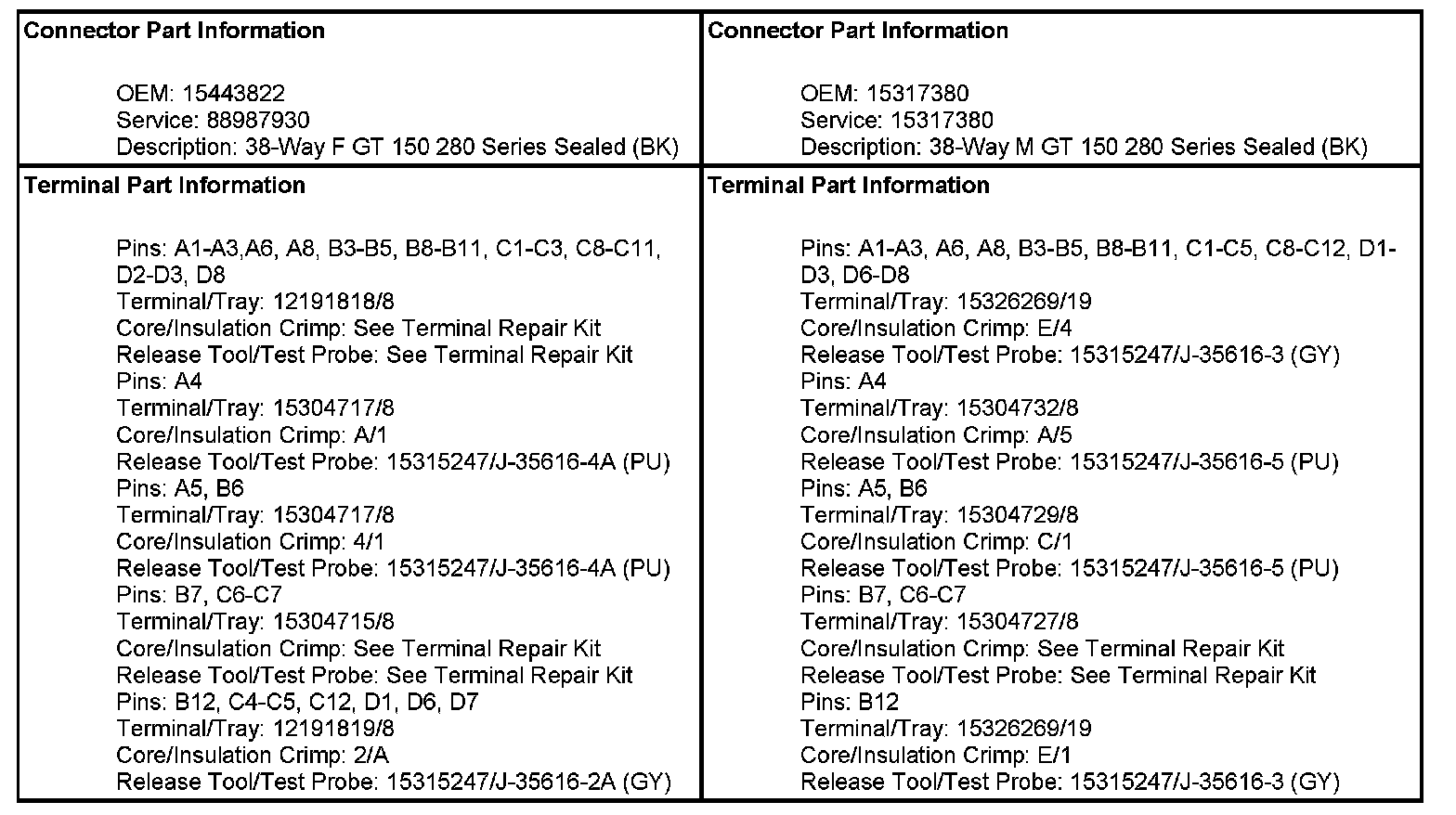

C101 Chassis Harness to I/P Harness

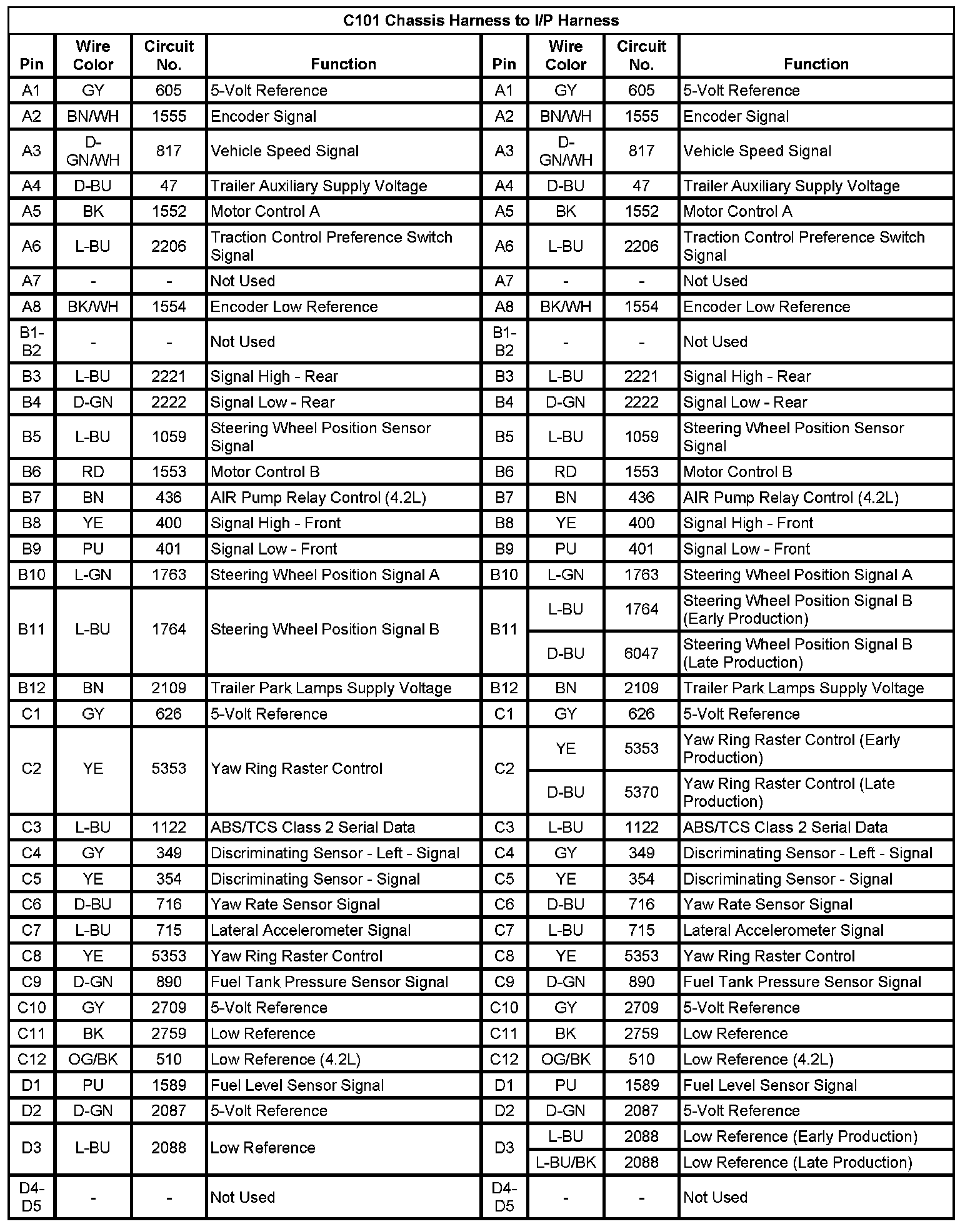

C101 Chassis Harness To I/P Harness (Pin A1 To D5):





C101 Chassis Harness To I/P Harness (Pin D6 To D8):
